Schneider Electric NSYCMUCR50 Vertical Rotating Fixing for 50 mm Square Tube, 310° Angle, 1.25 kg Load Capacity
Schneider Electric NSYCMUCR50 Vertical Rotating Fixing for 50 mm Square Tube, 310° Angle, 1.25 kg Load Capacity
- MPN: NSYCMUCR50
- PPN: SCH-NSYCMUCR50
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$487.38/ EA
Description

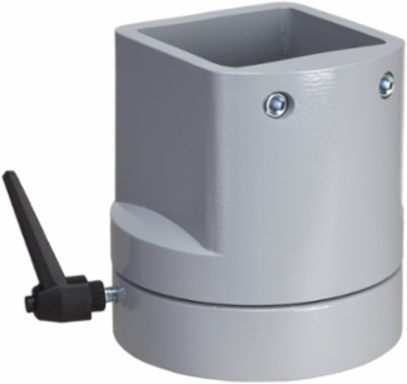

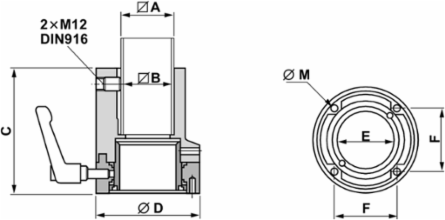

Spacial S3CM HMI vertical rotating fixing, square 50mm. Hight 115 mm, Diameter 96 mm . Bent and rotating enclosure fixing. Mounting on enclosure, in vertical position . Operating angle: 310°. Permanent permissible load: 1.25 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Specifications
Physical Attributes
- Color
- Gray RAL 7040)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rotating fixing
- Mounting Support
- for 50 mm square tube, option of passing cables through the inside
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- aluminium
- Operating Angle
- 310 °
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Silicone Free
- Yes
- Pep Code
- ENVPEP1001004EN
- Pn
- 1
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Diameter96 mm
Fixing Modefixing through the support surface by 4 screws M6
Mounting Locationon enclosure, in vertical position
Permanent Permissible Load1.25 kg
Product Or Component Typebent and rotating enclosure fixing
RangePanelSeT
Surface Finishepoxy-polyester powder
Accessory Separate Part Categorycable management accessory
Warranty In Months18
Offer Owner Code190789
Height Nominal115 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- bent and rotating enclosure fixing
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Germany, Spain, United States
