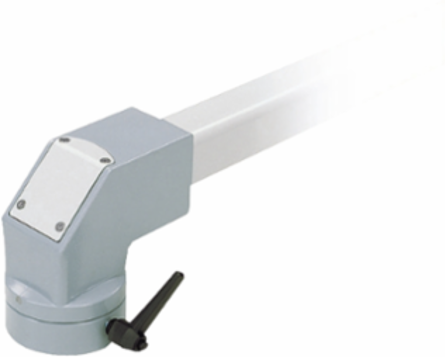

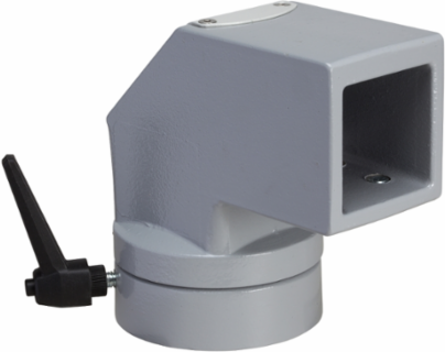

Schneider Electric NSYCMUCC50 Horizontal Rotating Fixing for 50 mm Square Tube - Aluminum, 2 kg Capacity
- MPN: NSYCMUCC50
- PPN: SCH-NSYCMUCC50
CAD
$901.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial S3CM HMI horizontal rotating fixing, square 50mm. H is 147 x 154 x 180 mm. Bent and rotating enclosure fixing. Mounting on enclosure, in horizontal position. Operating angle is 310 °. Permanent permissible load is 2 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7035. set of 1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Width
- 6.06 in
Height5.79 in
Depth180 mm
Physical Attributes
- Color
- Gray RAL 7040)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rotating fixing
- Mounting Support
- for 50 mm square tube, option of passing cables through the inside
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- aluminium
- Operating Angle
- 310 °
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Height Nominal
- 147 mm
- Width Nominal
- 154 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Diameter96 mm
Fixing Modefixing through the support surface by 4 screws M6
Mounting Locationon enclosure, in horizontal position
Permanent Permissible Load2 kg
Product Or Component Typebent and rotating enclosure fixing
RangePanelSeT
Surface Finishepoxy-polyester powder
Accessory Separate Part Categorycable management accessory
Pep CodeENVPEP1001004EN
Height Useful147 mm
Width Real154 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- bent and rotating enclosure fixing
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
