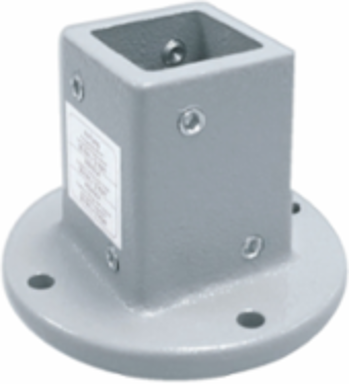

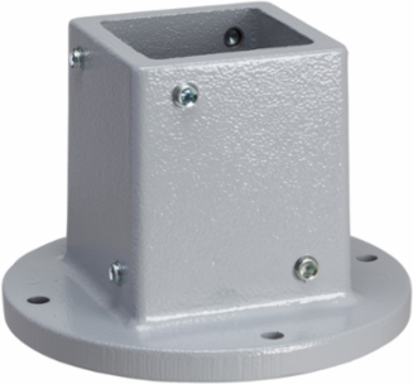

Schneider Electric NSYCMUMR50 Fixed Subbase 50 mm for PanelSeT S3CM, Moulded Steel, 3.25 kg Load
- MPN: NSYCMUMR50
- PPN: SCH-NSYCMUMR50
CAD
$368.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this fixed subbase is an essential mounting accessory for the PanelSeT S3CM HMI enclosure. Crafted from moulded steel with an epoxy-polyester powder finish, it boasts a compact design with a diameter and width of 152 mm, a height of 110 mm, and a weight of 3.5 kg, making it both robust and lightweight. This gray subbase (RAL 7040) is engineered to support a permanent load of up to 3.25 kg and allows for convenient cable management through its interior, ensuring a neat and efficient setup. With a reliable fixing mode using M12 screws, this product is designed for easy installation between the tube and support, making it an ideal choice for various multi-purpose applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Width
- 5.98 in
Height4.33 in
Depth152 mm
Physical Attributes
- Color
- Gray RAL 7040)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 fixed base
- Mounting Support
- option of passing cables through the inside, for 50 mm square tube
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- moulded steel
- Permanent Permissible Load
- 3.25 kg
- Product Or Component Type
- fixing on support
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1001004EN
- Height Useful
- 110 mm
- Width Real
- 152 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Diameter152 mm

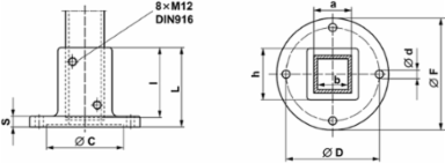

Fixing Modeby screw M12 - fixed base
Mounting Locationbetween tube and support
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Height Nominal110 mm
Width Nominal152 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fixing on support
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
