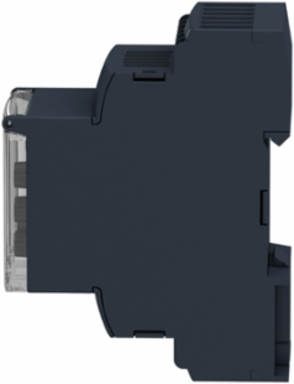

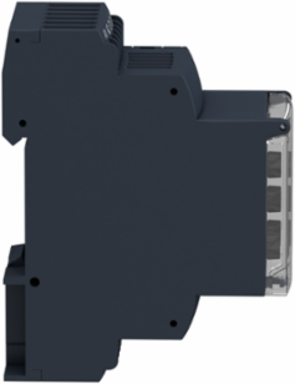

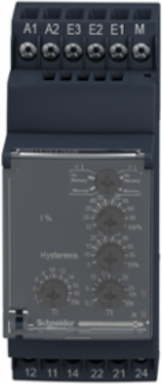

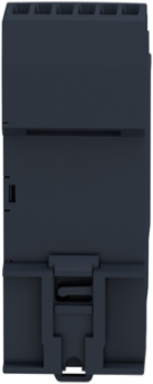

Schneider Electric RM35JA32MW Harmony Control Relay, 5A, 2 C/O, 0.15-15A, 24-240V AC/DC, DIN Rail

  • MPN: RM35JA32MW
  • PPN: SCH-RM35JA32MW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $205.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Width
    35 mm
    Country of OriginBrazil, Canada, France, Indonesia, Mexico, United States

    Complementary Attributes

    Control Circuit Voltage Limits
    - 15 % + 10 % Un, - 15 % + 10 % Un
    Line Rated Current
    5 A
    Maximum Power Consumption In Va
    3.5 VA AC
    Maximum Switching Current
    5 A AC/DC
    Minimum Switching Current
    10 mA 5 V DC
    Control Circuit Frequency40...70 Hz +/- 10 %
    Maximum Measuring Cycle30 ms measurement cycle as true rms value
    Maximum Power Consumption In W0.6 W DC
    Maximum Switching Voltage250 V AC/DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Dielectric Test Voltage
    2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
    Insulation Resistance
    > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
    Marking
    CE : EMC 89/336/EEC, CE : 73/23/EEC
    Measurement Error
    0.05 %/°C with temperature variation, 1 by volt over the whole range with voltage variation
    Repeat Accuracy
    +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
    Safety Reliability Data
    MTTFd = 296.8 years, B10d = 270000
    Utilisation Category
    AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate Agency
    GL, UL, GOST, C-tick, CSA
    Non-dissipating Shock Wave
    4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.0755394545, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    3 kg CO2 eq., 2.6720909091
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    170.63
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contacts Material
    cadmium free
    Control Type
    without test button
    Functionality
    overcurrent or undercurrent in window mode
    Hysteresis
    5-50 % threshold setting
    Insulation
    between supply and measurement
    Mechanical Durability
    30000000 cycles
    Operating Position
    any position without derating
    Polarity
    no DC
    Product Or Component Type
    current control relay
    Relay Monitored Parameters
    overcurrent or undercurrent detection
    Relay Type
    current control relay
    Returnability
    Yes
    Software Version
    EIME v5.8.1
    Sustainable Packaging
    Yes
    Threshold Setting
    10...100 %
    Total Lifecycle Carbon Footprint
    58 kg CO2 eq.
    Measurement Range 4
    150 mA...15 A current AC/DC
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime, In Kwh
    112.128
    Energy Model - Installation [A5]
    Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity mix; AC; < 1kV; EU-27
    [Uc] Control Circuit Voltage
    24...240 V
    [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz, non self-powered
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    199.1936
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    957.696
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    139.52
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    139.52
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Local SignallingLED (green) for power ON, LED (yellow) for relay ON
    Measurement Accuracy+/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Resistance Across Terminals0.005 Ohm E3-M terminals, 0.015 Ohm E2-M terminals, 0.05 Ohm E1-M terminals
    Time Delay Typeadjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault, adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, screw connectors
    Carbon Footprint Of The Distribution Phase [A4]0.0167723636, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0006485936
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]55 kg CO2 eq., 54.9367466667
    Local Publishable Date2026-03-26
    Future Imap152.89
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601004EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1918
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM3
    Contacts Type And Composition2 C/O
    Electrical Durability100000 cycles
    Housing Materialpolycarbonate
    Immunity To Microbreaks50 ms
    Measurement Range150 mA...15 A current AC/DC
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Control Relays
    Relay NameRM35JA
    Reset Time1500 ms time delay
    Shock Resistance15 gn 11 ms IEC 60255-21-1
    Supply Voltage Limits20.4-264 V AC/DC
    Switching Capacity In Va1250 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Contacts Composition2 C/O
    Pep CodeENVPEP1601004EN
    Pep Verification Date2019-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    Width Nominal35 mm
    [Ui] Rated Insulation Voltage250 V IEC 60664-1
    Run-up Delay At Power-up0.3 s
    Package Weight(Lbs)136.000 g
    Warranty (In Months)18
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]204.8256
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1097.216
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]957.696
    Water Pollution (M3) Operational Energy Use [B6]2266.88

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    57.7017979876
    Circularity Profile
    ENVEOLI1601004EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date
    2019-05-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ip Degree Of ProtectionIP20 IEC 60529 terminals), IP30 IEC 60529 casing)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-20-50 °C-20-50 °C
    Environmental DisclosureENVPEP1601004EN
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1601004EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    current control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001440
    ETIM 9EC001440

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts2 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
