Documentation & Downloads

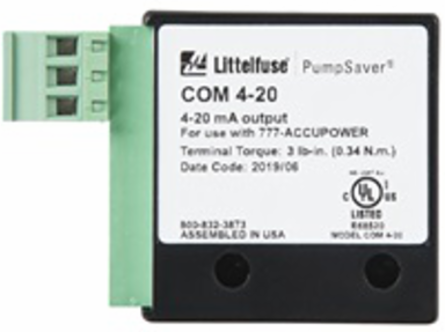

Littelfuse COM 4-20 COM 4-20 - COM 4-20MA Series
- MPN: COM 4-20
- UPC: 079458991673
- PPN: LTF-COM 4-20
CAD
$394.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
COM 4-20 - COM 4-20MA Series
Documentation & Downloads
Specifications
Key Specifications
- Nominal Output Current Full Range (mA)
- 4 - 20mA
- Protection Class
- IP20
- Mounting Method
- #8 screws; mount to side of 777-Accupower unit
- Humidity
- 10-95% non-condensing per IEC 68-2-3
- Weight (lbs/g)
- 0.25 lb. (4 oz. 113.4 g)
Surge ProtectionInput Power: IEC 61000-4-5 Level 1; Inputs/Data Lines: IEC 61000-4-5 Level 2
Termination TypeTorque: 3in-lbs; Wire: 12-20AWG
Operating Temperature-20° to 50°C (-4° to 122°F)
Dimensions2.08 in H x 2.90 in W x 0.77 in D (52.8 x 73.7 x 19.6 mm)
