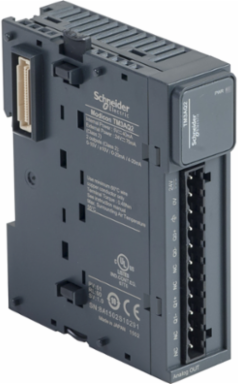

Schneider Electric TM3AQ2 Modicon TM3 Analog Output Module, 2 Outputs, 24V DC, IP20
- MPN: TM3AQ2
- PPN: SCH-TM3AQ2
CAD
$322.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon TM3 Analog Output Module, 2 Outputs, 24V DC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Germany, France, Italy, Japan, Singapore, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Insulation
- between output and supply 1500 V AC, between output and internal logic 500 V AC
- Lsb Value
- 2.44 mV, 0...10 V, 4.88 mV, - 10...10 V, 4.88 µA, 0...20 mA, 3.91 µA, 4...20 mA
- Typical Current Consumption
- 40 mA 5 V DC full load, 35 mA 5 V DC no load, 30 mA 24 V DC no load, 70 mA 24 V DC full load
- Certificate Agency
- CE, UKCA, RCM, EAC, cULus, CE, UKCA, RCM, EAC, cULus, cULus HazLoc
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04988872964154122, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0058833718780732834
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 27 kg CO2 eq., 27.321139884613935
- Local Publishable Date
- 2025-12-19
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- false
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply
- Immunity To Microbreaks
- 10 ms
- Local Signalling
- 1 LED green PWR
- Network Type
- DC
- Product Or Component Type
- analog output module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Repeat Accuracy
- +/- 0.4 %FS+/- 0.4 %FS
- Shock Resistance
- 15 gn 11 ms
- Stabilisation Time
- 1 ms
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Temperature Drift
- +/- 0.006 %FS/°C+/- 0.006 %FS/°C
- Type Of Cable
- twisted shielded pairs cable <30 m output
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- Pep Code
- ENVPEP1402009EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 220.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Load Impedance Ohmic1 kOhm voltage, 300 Ohm current
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Vibration Resistance3.5 mm 5-8.4 Hz) on DIN rail, 3 gn 8.4-150 Hz) on DIN rail
Non-linearity+/- 0.01 %FS, +/- 0.01 %FS
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5341846124131088, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 14.434905846397077
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Conversion Time1 ms + 1 ms per channel + 1 controller cycle time
Front Installation Possiblefalse
Load Typeresistive
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM3
ReturnabilityYes
Software Versionv6.1
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Total Lifecycle Carbon Footprint42 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessoryfalse
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %3
Width Nominal23.6 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 42.346002444943736
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1402009EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- analog output module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Output Attributes
- Analogue Output Resolution
- 11 bits + sign, 12 bits
- Analogue Output Number
- 2
Analogue Output Typecurrent 4...20 mA, current 0...20 mA, voltage 0...10 V, voltage - 10...10 V
Output Ripple20 mV
Input Attributes
- Analogue Input Resolution
- 12 bits, 11 bits + sign
