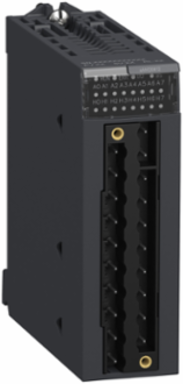

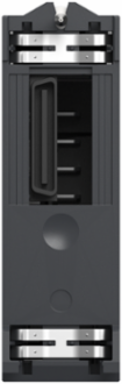

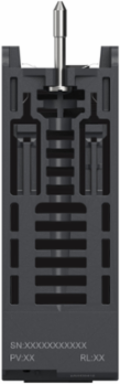

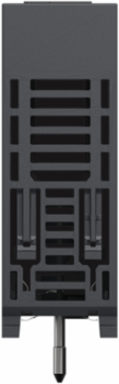

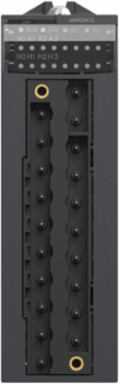

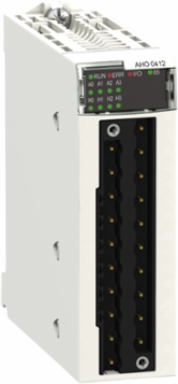

Schneider Electric BMEAHO0412 Modicon X80 Analog Output Module with 4 HART Outputs, 4 to 20mA
- MPN: BMEAHO0412
- PPN: SCH-BMEAHO0412
CAD
$2947.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

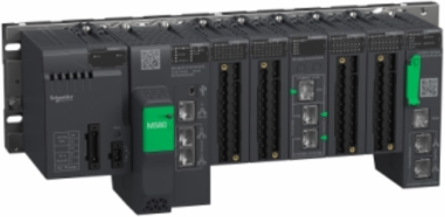

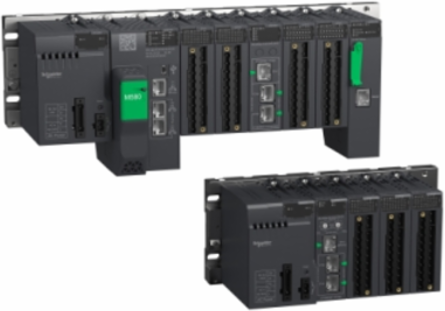

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 4 outputs with 15bit + sign resolution. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way terminal block, Telefast for electrical connection. It weighs 0.223kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with BMEP58xxx processor, BMEXBPxxx backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20xxx terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Electrical Connection
- 20 ways terminal block, Telefast
- Certificate Agency
- CE, RCM, CSA, EAC, Merchant Navy, UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.3832756364
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 28 kg CO2 eq., 27.5982545455
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Application Specific I O
- HART
- Function Available
- I/O mapping
- Measurement Error
- 0.1 % of full scale 25 °C0.2 % of full scale 0...60 °C
- Product Or Component Type
- analog output module
- Range Of Product
- Modicon X80
- Software Version
- v5.9.4
- Temperature Drift
- 45 ppm/°C
- Total Lifecycle Carbon Footprint
- 262 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 76521.6
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Isolation Voltage1000 V DC 60 s between channels1400 V DC 60 s between channels and ground, 1400 V DC 60 s between channels and bus
Carbon Footprint Of The Distribution Phase [A4]0.0282449455, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0575162182, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]233 kg CO2 eq., 233.4714871508
Local Publishable Date2026-01-23
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Checksbroken wire detection
Load Impedance Ohmic600 Ohm 0...20 mA570 Ohm 0...21 mA
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentstandard version
ReturnabilityYes
Sustainable PackagingYes
Topologypoint-to-point
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Application Specific I/OHART
Package Weight(Lbs)216.000 g
Warranty (In Months)18
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 261.5387784963
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityBMEP58... processor, BMEXBP... backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20... terminal block
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2311046EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- analog output module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Output Attributes
- Analogue Output Number
- 4
- Analogue Output Type
- current 4...20 mA
Analogue Output Resolution15 bits + sign
Input Attributes
- Input Output Isolation
- isolated
