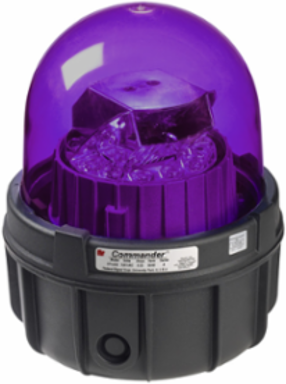

Commander LED Rotating Light, Hazardous Location, UL and cUL CID2, Magenta
Federal Signal

Federal Signal 371LEDX-120M Commander LED Rotating Light, Hazardous Location, UL and cUL CID2, Magenta

  • MPN: 371LEDX-120M
  • UPC: 782979102854
  • PPN: FDS-371LEDX-120M
  • UNSPSC: 39111706

CAD

$3399.90

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Model 371LEDX hazardous location warning lights have an array of 12 powerful LEDs arranged below a reflector. The reflector focuses the light from the LEDs into a high-intensity beam and rotates 360 degrees.The LEDs, reflector, and motor module are sealed under a polycarbonate dome, which completes a watertight, dust-tight enclosure. The dome and ring assembly simply screw on, providing access to the interior of the light.The 371LEDX base is hard coat anodized and features electrostatically applied black powder coat for greater corrosion resistance. Wiring can be routed through the pipe-mount opening in the bottom of the light, or the two side knockouts can be used for side entry wiring. Installation can be surface or 1-inch NPT pipe mounted.

Features

  • Available in 120 Vac
  • 50,000-hour LED light source
  • Surface mount and integrated 1-inch NPT pipe mount
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Weight
7.1 lbs
Candela Power Peak
15000
Diameter
9.25 in (234.95 mm)
Availability
Call For Availability
Lens Style
Smooth Polycarbonate
Operating Current Amps
0.32
Operating Voltage
120 Vac
Environmental Rating
Hazardous Location
Lead Time
Call For Availability
Height11.38 in
Body ColorBlack
Certification ListingUL, cUL
Flashes Per Minute60
Lens ColorMagenta
Mount Type1-Inch NPT Pipe, Surface
Operating Temp.-31˚ to +104˚ F (-40˚ to +40˚ C)
Visual Signals Lens ColorMagenta
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
