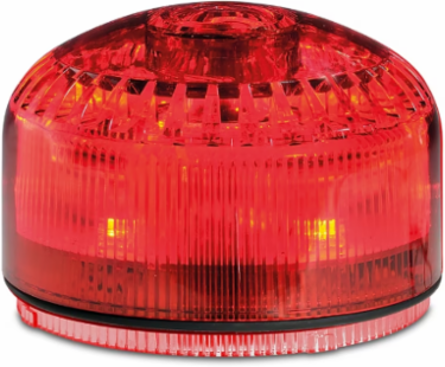

Federal Signal SLM500R StreamLine Modular Audible Visual LED Light, Multifunctional, UL and cUL, Red, Base Sold Separately
Federal Signal SLM500R StreamLine Modular Audible Visual LED Light, Multifunctional, UL and cUL, Red, Base Sold Separately
- MPN: SLM500R
- UPC: 782979232162
- PPN: FDS-SLM500R
- UNSPSC: 39111706
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$347.34/ EA
Description
Model SLM500 is a multifunctional LED beacon and sounder combination developed with a multiple input technology that allows three separate levels of alarm, controllable via wiring selection. This unit offers multiple combinations including independent visual signal, independent audible tone, or a combined audible tone and visual signal. SLM500 offers three flash patterns (3x strobe, fade and steady) and the option of no visual effect. There are 64 unique tones to select from across two switches (32 tones per switch). The volume of the selected tone is adjustable between 86-105 dBa @ 1m at three output levels (high, medium, low) through an integrated button. Channel 1 includes a visual signal only (default 3x strobe). Channel 2 combines an audible tone from switch A to the chosen flash pattern. Channel 3 combines an audible tone from switch B to the chosen flash pattern. Channel 2 and 3 allow the option of audible tone only/no visual effect by cycling through the flash patterns using the integrated button, until the visual effect turns off. The SLM500 enclosure is made from a self-extinguishing polycarbonate material with high impact and UV resistance.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.
Features
- Compatible with 12-24VAC/DC or 120-240VAC*
- PLC compatible with PNP or NPN connections
- (Except Dock Base, only NPN)
- 3 Channels includedVisual signal only
- Visual signal onlyVisual signal + tone 1
- Visual signal + tone 1Visual signal + tone 2
- Visual signal + tone 2
- The option to have independent audible tone
- 100,000 hour LED
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- 64 tone options at three adjustable levels
- Seven mounting base options
- Type 3R, IP65 enclosure
- CE Certified
- UL and cUL Listed
Specifications
- Operating Voltage
- 12-24VAC/DC, 120-240VAC
- Flash Pattern Type
- Simulated Strobe, Steady, Fade
- Diameter
- 3.9 in (9.91 cm)
- Weight
- 0.44 lbs
- Material
- Self-extinguishing polycarbonate
- Certification Listing
- UL, cUL, CE
- Lens Color
- Red
- Model
- SLM500
- Tone Options
- 64 tones (32 per switch)
Sound Level86-105 dBa @ 1 m
Height1.67 in (4.24 cm)
Depth1.67 in (4.24 cm)
Mount Type2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
Enclosure RatingType 3R, IP65
Operating Temperature-40°F to 131°F (-40°C to 55°C)
Body ColorGray, Red
Channels3
