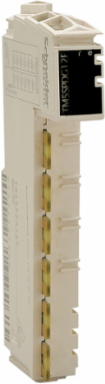

Schneider Electric TM5SPDG12F Modicon TM5 Common Distribution Module, 12 I/O, 24V DC, IP20

MPN: TM5SPDG12F
PPN: SCH-TM5SPDG12F
UNSPSC: 32151703

$133.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a common distribution electronic module with a rated supply voltage of 24V DC. It allows cabling various voltage to power 12 I/O in 0V DC. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Features

Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
Modicon TM5 is characterized by easy cabling and maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Austria

Depth	75 mm

Complementary Attributes

Us Rated Supply Voltage	24 V DC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Certificate Agency	cULus, C-tick, CSA, GOST-R
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Front Installation Possible	false
Network Type	DC
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM5
Shock Resistance	15 gn 11 ms
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Vibration Resistance	1 gn 8.4-150 Hz) on DIN rail3.5 mm 5-8.4 Hz) on DIN rail
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Bus Diagnosis Possible	false
System Accessory	false
Width Nominal	12.5 mm
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Short Circuit Protection	6.3 A internal fuse
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Performance Level According To En Iso 13849 1	none
Radio Standard Wi Fi 802.11	false
Supporting Protocol For Data Highway	false
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511026EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	screw/spring terminal block
Marking	CE
Optical Interface Present	false
Product Or Component Type	common distribution module
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	No
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Potential Separation Present	false
Height Nominal	99 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Rack Assembly Possible	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false

Environment Attributes Main

Ambient Air Temperature For Operation	0-50 °C vertical installation)0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1511026EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation

Product Compatibility	motion controller, logic controller
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1511026EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP1511026EN
