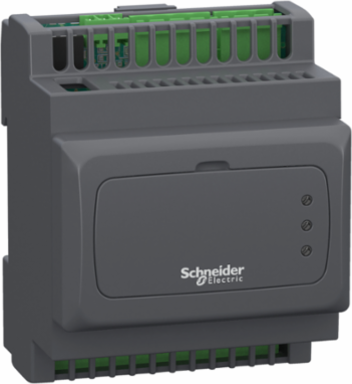

Schneider Electric TM171EP14R Modicon M171 I/O Expansion Module, 14 Inputs/Outputs, 24V AC/DC
- MPN: TM171EP14R
- PPN: SCH-TM171EP14R
CAD
$181.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 4 discrete inputs with sink or source (positive/negative) discrete input logic. It is a module with discrete input voltage of 24V AC/DC and analogue output voltage ranges from 0V to 10V. This module offers SPDT relay output with independent common and 3 SPST relay output with same common discrete output. The main application of this module is HVAC and pumping solution. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Features
- This performance expansion module instantly adds 14 built-in I/O points to your setup, featuring 4 digital inputs, 4 analog inputs, 4 digital outputs, and 2 analog outputs. It allows you to scale up complex HVAC or pumping automation machinery effortlessly without the financial burden or footprint of buying a completely new primary controller.
- Equipped with an embedded CAN expansion bus port utilizing a robust screw terminal block, the module guarantees high-speed, noise-resistant data communication across your network. This dedicated industrial fieldbus architecture prevents latency issues and ensures reliable real-time telemetry between the main processor and secondary field devices.
- The 4 highly versatile analog inputs are configurable by pair and natively support 0-5V ratiometric, 0-10V voltage, 4-20mA current, as well as NTC and PTC temperature sensors. This broad compatibility eliminates the need for expensive external signal converters or signal conditioning cards, allowing you to wire existing environmental probes directly to the terminal block.
- This module features 1 heavy-duty SPDT relay output with an independent common alongside 3 SPST relay outputs sharing a single common, all rated for a 3 A discrete output current at 24V AC/DC. This versatile contact configuration gives you the flexibility to safely isolate critical loads or switch multi-stage compressors, fans, and valves from a single compact block.
- Designed for high-density control panels, the ultra-compact housing measures just 70mm wide, 87mm high, and 61.6mm deep, snap-mounting onto standard 35mm DIN rails. Its space-saving layout dramatically reduces panel real estate requirements while maintaining an IP20 protection rating to shield internal components from dust during routine maintenance.
- Built to meet rigorous global standards, this expansion module carries official CE, cURus, CSA, EAC, and RoHS China certifications. These credentials guarantee compliance with municipal and facility electrical codes, ensuring your automated systems clear inspections smoothly while protecting your upstream equipment from electrical faults.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy, Sweden, United States
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Input/Output Number
- 2 analog output4 digital output, 4 analog input, 4 digital input
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.5216254315182522
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.41812723959728
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1710004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- HVAC and pumping solution
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 260 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1710004EN
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- [Us] Rated Supply Voltage
- 24 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase [A4]0.1115051918043258, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.004696289541949586, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]249 kg CO2 eq., 248.69519856683178
Local Publishable Date2026-01-12
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Number Of Port1 CAN port - screw terminal block
Product Or Component Typeadditional I/O module
Range Of ProductModicon M171/M172
Sensor Power Supply12-12 V DC 85 mA
Sustainable PackagingYes
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Number Of Inputs/Outputs14
Package Weight(Lbs)209.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 259.7511527192936
- Environmental Disclosure
- ENVPEP1710004EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1710004EN
- Pcr Version
- PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1710004EN
Eu Rohs DirectiveCompliant By Exemption
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-25
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- additional I/O module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001421
ETIM 9EC001421
Output Attributes
- Discrete Output Number
- 1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common
- Discrete Output Current
- 3 A relay
Analogue Output Number2 voltage 0...10 V
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric)current 4...20 mA, voltage 0...10 VNTC temperature probe - 50...110 °C 0.1 °CNTC temperature probe - 40...137 °C 0.1 °C extended)PTC temperature probe - 50...150 °C 0.1 °C
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 4
- Input Impedance
- 20 kOhm
Analogue Input Number4 configurable by pair
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC
