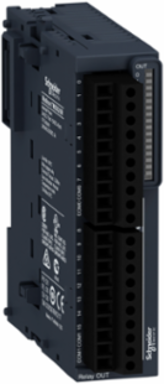

Schneider Electric TM3DQ16R Modicon TM3 Discrete Output Module, 16 Relay Outputs, 24V DC

MPN: TM3DQ16R
PPN: SCH-TM3DQ16R
UNSPSC: 32151705

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$295.95

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This digital output module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers It consists in 16 N/O relay outputs 2 A. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.14kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Features

This Modicon TM3 digital expansion module features 16 independent, Normally Open (N/O) relay outputs packed into an ultra-slim 27.4mm housing. This exceptional density lets automation engineers scale out their physical device connections such as control valves, indicator lights, and interposing motor starters without consuming premium cabinet space or incurring the high cost of multiple small-density blocks.
Designed for broad ecosystem compatibility, this expansion card functions as a plug-and-play addition to the Modicon M221, M241, M251, and M262 logic controller platforms. Utilizing a built-in interlocking bus connector that routes data and internal power directly from the central CPU, it allows for fast system expansion and lets you upgrade or revise the main controller model later on without rewriting field I/O configurations.
Each of the 16 onboard relay channels is fully rated to switch up to 2000 mA (2 Amps) of continuous current across both 240V AC and 30V DC lines. This high current handling eliminates the need for external slave relays when driving standard low-power industrial actuators, while an ultra-low minimum switching load of 10 mA at 5V DC ensures reliable signal transmission for low-voltage monitoring circuits.
Engineered with multi-tier optical and physical barriers, this module features a highly robust 2300V AC dielectric insulation layer between the external output channels and the internal processing logic. This heavy-duty isolation prevents destructive electrical noise, line surges, and inductive kickback from migrating into the main controller backplane, safeguarding your core PLC investment from hardware failures.
Equipped with a removable 3.81mm pitch screw terminal block, this module dramatically simplifies installation and field maintenance protocols. If a replacement is ever required, technicians can simply unplug the pre-wired terminal blocks, snap the module off its standard 35mm DIN rail, and insert a new unit without tracing, cutting, or re-terminating individual field wires.
Featuring a rapid 10 ms turn-on and 5 ms turn-off mechanical response time, this module ensures crisp execution of time-sensitive automated sequences. Every output channel is coupled to a dedicated, front-facing green LED status indicator, providing maintenance crews with immediate visual verification of active rungs and making it effortless to isolate field-level wiring faults from logic-level programming issues.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Singapore, United States
Depth	84.6 mm

Weight	393.9 g

Complementary Attributes

Maximum Cable Distance Between Devices	unshielded cable <30 m relay output

Minimum Switching Current	10 mA 5 V DC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Vibration Resistance	3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
Carbon Footprint Of The Distribution Phase A4	0.0586602107635913, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.006917791590367361
Carbon Footprint Of The Use Phase B2 B3 B4 B6	68 kg CO2 eq., 68.30284971153483
Local Publishable Date	2026-03-26
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1402009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Awg Gauge	0.14-1.5 mm² / 26 AWG...16 AWG with solid cable
Device Application	Industrial Application
Front Installation Possible	false
Local Signalling	1 LED per channel (green) for output status
Mechanical Durability	20000000 cycles
Optical Interface Present	false
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	none
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Fieldbus Connection Over Separate Bus Coupler Possible	false
System Accessory	false
Short Circuit Protection Outputs Present	false
Database Version	2023-02
Height Nominal	90 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false
Functional Unit Description	To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	3

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Typical Current Consumption	37 mA 5 V DC, 5 mA
Certificate Agency	CE, cULus, UKCA, RCM, EAC, cULus HazLoc
Carbon Footprint Of The End Of Life Phase C1 To C4	0.6281054293418613, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	17 kg CO2 eq., 16.972863919091964
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Bearing Track Assembly Possible	true
Electrical Connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Isolation Between Channels And Bus	500 V AC
Marking	CE
Network Type	DC
Power Supply Type	electronic powered by internal bus
Product Or Component Type	discrete output module
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Safety Reliability Data	MTBF = 130 years 40 °C
Software Version	v6.1
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	86 kg CO2 eq.
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Digital Outputs Configurable	false
Housing Color	grey
Digital Inputs Configurable	false
Time Delay At Signal Change	10-10 ms
Data Source	extrapolated product
Width Nominal	27.4 mm
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1402009EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06

Relative Humidity	10-95 % without condensation for operation, 10-95 % without condensation for storage
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	85.96939706232261
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1402009EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	discrete output module

Range Of Product	Modicon TM3

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Output Attributes

Discrete Output Number	relay normally open, 16
Discrete Output Current	2000 mA relay output
Discrete Output Type	relay normally open
Discrete Output Voltage Type	AC/DC

Response Time On Output	<= 10 ms maximum (turn on), <= 10 ms maximum (turn on), <= 5 ms maximum (turn off), <= 5 ms maximum (turn off)<= 10 ms maximum (turn on), <= 10 ms maximum (turn on), <= 5 ms maximum (turn off), <= 5 ms maximum (turn off)
Discrete Output Logic	positive or negative
Discrete Output Voltage	240 V ACrelay outputs30 V DCrelay outputs
