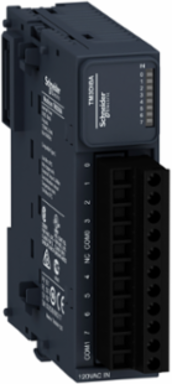

Schneider Electric TM3DI8A Modicon TM3 Discrete Input Module, 8 Inputs, 120V AC, IP20
- MPN: TM3DI8A
- PPN: SCH-TM3DI8A
CAD
$188.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon TM3 Discrete Input Module, 8 Inputs, 120V AC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Singapore, Taiwan, United States
Depth84.6 mm
Physical Attributes
- Housing Color
- grey
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current State 0 Guaranteed
- <= 15 mA input, <= 15 mA input<= 15 mA input, <= 15 mA input
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Vibration Resistance
- 3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail, 3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
- Carbon Footprint Of The Distribution Phase [A4]
- 0.034251963634490984, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.004039329946139866
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Awg Gauge
- 0.2-2.5 mm² / AWG 24...AWG 14 with solid cable
- Device Application
- Industrial Application
- Front Installation Possible
- false
- Local Signalling
- 1 LED per channel (green) for input status
- Network Type
- DC
- Power Supply Type
- electronic powered by internal bus
- Product Or Component Type
- discrete input module
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Safety Reliability Data
- MTBF = 410 years 40 °C
- Software Version
- v6.1
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- Voltage State 1 Guaranteed
- input 79...132 V DC
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Digital Outputs Configurable
- false
- Housing Color
- grey
- Digital Inputs Configurable
- false
- Time Delay At Signal Change
- 25-30 ms
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Taiwan, TW
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential, In %
- 3
- Width Nominal
- 27.4 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current State 1 Guaranteed2...15 mA input, 2...15 mA
Typical Current Consumption60 mA 5 V DC, 25 mA
Certificate AgencycULus, CE, UKCA, RCM, EAC, CE, cULus, UKCA, RCM, EAC, cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.36675361449258215, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 9.910532372153215
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Bearing Track Assembly Possibletrue
Electrical Connection11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs
Isolation Between Channels And Bus1500 V AC
MarkingCE
Optical Interface Presentfalse
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentnone
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Shock Resistance15 gn 11 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Voltage State 0 Guaranteed0...20 V input
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
System Accessoryfalse
Short Circuit Protection Outputs Presentfalse
Pep CodeENVPEP1402009EN
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal90 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)230.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP1402009EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Relative Humidity10-95 % without condensation for operation, 10-95 % without condensation for storage
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint10.315577280226428
Circularity ProfileENVEOLI1402009EN
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Voltage Type
- AC/DC
Input Attributes
- Discrete Input Number
- 8 conforming to IEC 61131-2 Type 1, 8
- Discrete Input Current
- 7.5 mA
- Discrete Input Voltage Type
- AC
Response Time On Input25 ms (maximum (turn on)), 30 ms (maximum (turn off))
Discrete Input Voltage120 V AC
Input Impedance11 kOhm
