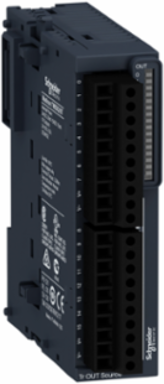

Schneider Electric TM3DQ16T Modicon TM3 Discrete Output Module, 16 Transistor Outputs, 24V DC
- MPN: TM3DQ16T
- PPN: SCH-TM3DQ16T
CAD
$268.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Features
- The TM3DQ16T provides 16 transistor outputs in a slim, modular form factor, allowing you to control a high volume of actuators, solenoids, or relays without expanding your DIN rail footprint. This high-density design reduces hardware overhead and allows for more compact control panel builds in space-constrained industrial environments.
- As part of the flexible Modicon TM3 system, this module features a seamless bus expansion connector that snaps directly onto your existing controller or bus coupler. This "plug-and-play" architecture ensures instant communication with the CPU and simplifies your migration paths or system scaling without complex rewiring.
- Each of the 16 channels is paired with a dedicated front-facing LED indicator that provides real-time status of the I/O state. This visual feedback allows maintenance teams to identify faulty circuits or logic issues at a glance, drastically reducing Mean Time to Repair (MTTR) and minimizing costly production downtime.
- Engineered to withstand the rigors of heavy industry, the TM3DQ16T is CE, UL, and CSA certified, and compliant with vibration and shock resistance standards. Its robust electrical isolation between the internal logic and the I/O circuits ensures that transient spikes won't damage your primary controller, maintaining system integrity in electrically noisy environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Taiwan, United States |
|---|
| Depth | 84.6 mm |
|---|
Physical Attributes
| Housing Color | grey |
|---|
Complementary Attributes
| Maximum Tungsten Load | <3 W transistor, <3 W transistor<3 W transistor, <3 W transistor |
|---|---|
| Maximum Leakage Current | 0.1 mA |
| Maximum Cable Distance Between Devices | unshielded cable <30 m transistor output |
|---|---|
| Maximum Voltage Drop | <0.4 V<0.4 V |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Vibration Resistance | 3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04914412173644359, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0057955603575050255 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 18 kg CO2 eq., 18.21409325640929 |
| Local Publishable Date | 2025-12-19 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Awg Gauge | 0.14-1.5 mm² / 26 AWG...16 AWG with solid cable |
| Device Application | Industrial Application |
| Front Installation Possible | false |
| Local Signalling | 1 LED per channel (green) for output status |
| Network Type | DC |
| Power Supply Type | electronic powered by internal bus |
| Product Or Component Type | discrete output module |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Safety Reliability Data | MTBF = 57 years 40 °C |
| Software Version | v6.1 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 33 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Digital Outputs Configurable | false |
| Housing Color | grey |
| Digital Inputs Configurable | false |
| Time Delay At Signal Change | 0.45-0.45 ms |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Taiwan, TW |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; China, CN |
| Recyclability Potential In % | 3 |
| Width Nominal | 27.4 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Typical Current Consumption | 5 mA 5 V DC0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC |
| Certificate Agency | CE, cULus, UKCA, RCM, EAC, cULus HazLoc |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5262117077502266, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 14 kg CO2 eq., 14.219459490480702 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Bearing Track Assembly Possible | true |
| Electrical Connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Isolation Between Channels And Bus | 500 V AC |
| Marking | CE |
| Optical Interface Present | false |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | none |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| System Accessory | false |
| Short Circuit Protection Outputs Present | true |
| Pep Code | ENVPEP1402009EN |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; China, CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; China, CN |
| Height Nominal | 90 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 216.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation) |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1402009EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Relative Humidity | 10-95 % without condensation for operation, 10-95 % without condensation for storage |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 33.01470413673417 |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | discrete output module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | transistor, 16 |
|---|---|
| Discrete Output Current | 500 mA transistor output |
| Discrete Output Type | transistor |
| Discrete Output Voltage Type | AC/DC |
| Response Time On Output | 450 µs maximum (turn on), 450 µs maximum (turn off) |
|---|---|
| Discrete Output Logic | positive logic (source) |
| Discrete Output Voltage | 24 V DCtransistor |
