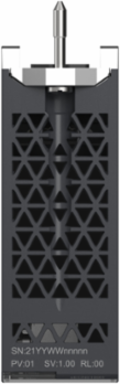

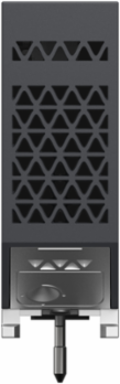

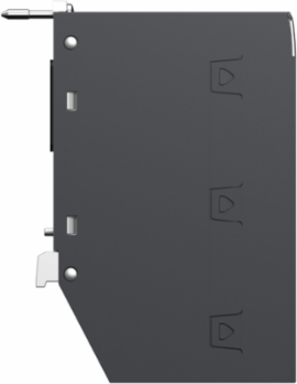

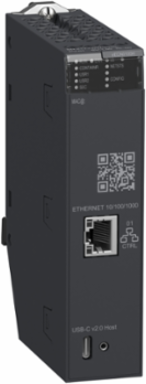

Schneider Electric BMEECN0100H Edge compute node, Modicon M580, ARM V7 32 bit, Linux, Application platform, Container technology
- MPN: BMEECN0100H
- PPN: SCH-BMEECN0100H
CAD
$3955.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This module belongs to Schneider Electric's Modicon M580 range. It integrates the latest IT technologies to provide a simple and powerful open platform for small applications. It brings the IT concept inside the Modicon M580 system without requiring the installation of dedicated Industrial PC hardware. The module can be installed where the M580 is used for any kind of application in any segment. Moreover, it provides great flexibility by offering the possibility of choosing the language for development. The module is based on three pillars, the first one is to boost the module while adding new values to the M580 system, such as complex calculations, third-party device with custom protocols, etc. This model supports Secure boost. Lastly, this module offers high reliability by combining the robustness of both the Modicon M580 and Linux OS worlds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Communications & Management Attributes
| Communication Service | OPC UA server (container only), network management SNMP agent V1, time synchronization NTP V4 - Client and Server |
|---|
| Communication Network Type | network segmentation |
|---|
Complementary Attributes
| Integrated Connection Type | 1 Ethernet port RJ45 10/100/1000 Mbit/s double shielded twisted pair |
|---|
| Maximum Number Of Modules Per Rack | 2 |
|---|
Important Information Attributes
| Current Consumption | <= 155 mA 24 V DC, <= 155 mA 24 V DC, <= 155 mA 24 V DC<= 155 mA 24 V DC, <= 155 mA 24 V DC, <= 155 mA 24 V DC |
|---|---|
| Local Signalling | 1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O LED status1 LED (green/red) for container status, 1 LED (green/red) for USR1 LED status, 1 LED (green/red) for USR2 LED status, 1 LED (green/red) for SECURE status, 1 LED (green/red) for control port status, 1 LED (green/red) for CONFIG status |
| Software Package | Docker V19.03.8, Schneider Applications |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0523064, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.134152, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 163 kg CO2 eq., 162.8164285714 |
| Local Publishable Date | 2026-07-27 |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 30.248 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Data Storage Equipment | 8 GB eMMC internal storage) |
| Electrical Connection | plug in via rack |
| Exchange Mode | half duplex, full duplex, autonegotiation |
| Memory Type | 1 GB ECC DDR3 RAM |
| Operating System | Linux Yocto V5.4 dunfell |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | No |
| Slot Occupied By Module | 1 |
| Supply | internal power supply via rack |
| Total Lifecycle Carbon Footprint | 194 kg CO2 eq. |
| Type Of Cooling | fanless |
| Web Server | for commissioning, operational and maintenance |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3 |
| Functional-unit Unit | EACH |
| Energy Consumption On Product Lifetime In Kwh | 293.2848 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |

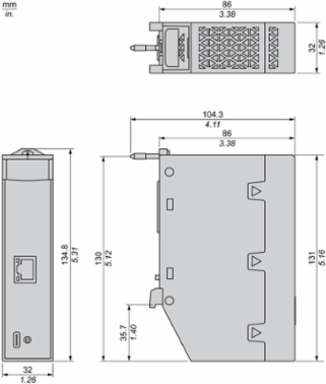

| Height Nominal | 131.0 mm |
| Width Nominal | 32.0 mm |
| Package Weight(Lbs) | 544.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 162.6725 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 347.256 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -13.8056 |
| Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] | 82.128 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 69.7488 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 347.256 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -13.8056 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 11.3608 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 13.3376 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 11.1784 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 11.1072 |
| Cybersecurity | secure communication (HTTPS), REST API with transport layer security (TLS), network physical isolation, Achilles level 2 tested |
|---|---|
| Opc Ua | OPC UA server, 2 maximum subscriptions per session, 1000 monitored item max in fast sampling mode, 20 ms, minimum publishing interval in fast sampling mode, 100000, maximum number of nodes, 2 clients connection max |
| Certificate Agency | CE, cULus, RCM, UKCA, EAC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.41756 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 30 kg CO2 eq., 30.248 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-02-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2309052EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2348 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Backplane Slot Location | Ethernet + X-bus Slot |
| Device Application | application platform |
| Environmental Characteristic | hazardous location class I division 2 |
| Marking | CE |
| Mounting Location | main rack |
| Processor Name | ARM V7 32 bit dual core at 500 MHz |
| Product Or Component Type | Edge compute node |
| Range Of Product | Modicon M580 |
| Shock Resistance | 30 gn |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Transmission Support Medium | Ethernet backplane |
| Vibration Resistance | 3 gn |
| Pep Code | ENVPEP2309052EN |
| Pep Verification Date | 2023-09-27 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 32 |
| Length Total | 86.05 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 30.2104 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 30.248 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 11.1784 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 441.496 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -57.984 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 11.5864 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 11.1784 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 360.592 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -14.3272 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 344.272 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -13.8056 |
| Customs Code | 8471500150 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2309052EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m)2000 m...5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2023-09-27 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Product Compatibility | Modicon M580 standalone CPU (BMEP58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..) |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 193.6684469714 |
| Environmental Disclosure | ENVPEP2309052EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2309052EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | Edge compute node |
|---|
| Range Of Product | Modicon M580 |
|---|
ETIM
| ETIM 8 | EC001422 |
|---|
| ETIM 9 | EC001422 |
|---|
