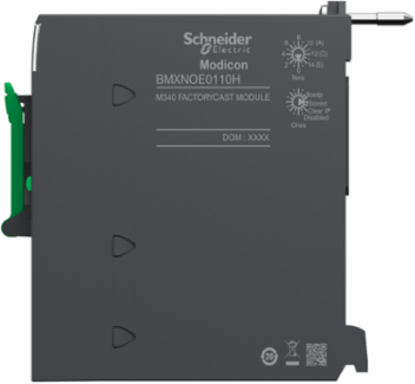

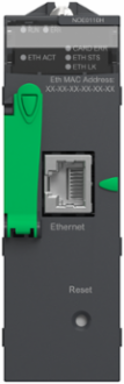

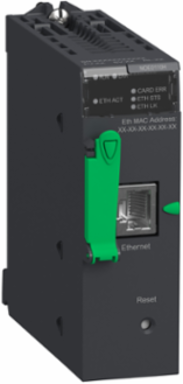

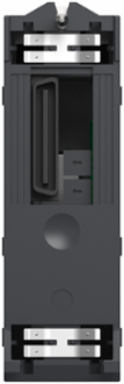

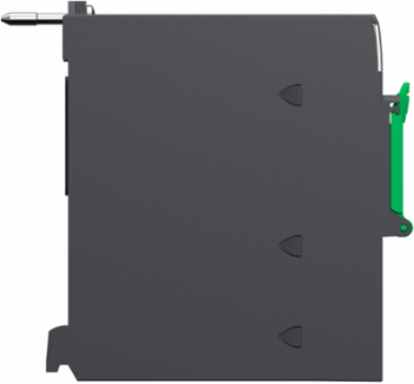

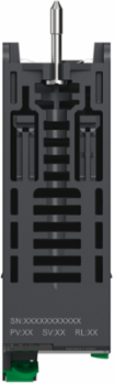

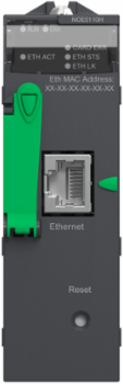

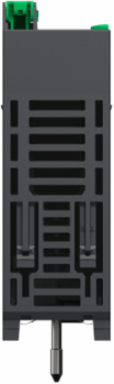

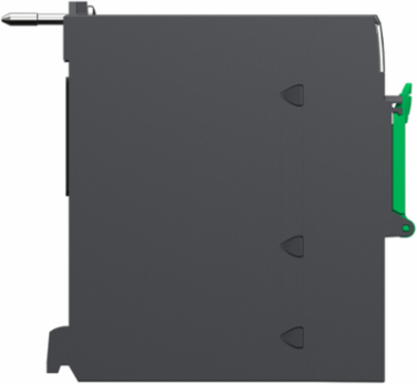

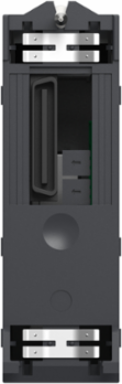

Schneider Electric BMXNOE0110H Ethernet Module, Modicon M340, 10/100 RJ45, IP20, -25 to 70 C
- MPN: BMXNOE0110H
- PPN: SCH-BMXNOE0110H
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Communications & Management Attributes
- Communication Service
- bandwidth management, FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, web server configurable, Data Editor (via PC, pocket PC or PDA terminal), SOAP XML Web service (server)
Complementary Attributes
- Integrated Connection Type
- Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Memory Usage
- user web page size internal RAMactivating the standard web server supplied Flash memory card (BMXRWSC016M), application saving supplied Flash memory card (BMXRWSC016M)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0321683438, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0979291406, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 96 kg CO2 eq., 96.3229090909
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Marking
- CE
- Module Format
- standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon M340 automation platform
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2402021EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32
- Package Weight(Lbs)
- 246.000 g
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2251.584
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS)1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR)
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.39590625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 16.75490625
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
ConceptTransparent Ready
Current Consumption90 mA 24 V DC
Memory Descriptionsupplied Flash memory card (BMXRWSC016M)internal RAM 16000 kB
Port Ethernet10BASE-T/100BASE-TX
Product Or Component TypeEthernet TCP/IP network module
Protective Treatmentconformal coating
ReturnabilityNo
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint114 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh170.2944
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]10193.625
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10193.625
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 113.6038190753
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP network module
Range Of ProductModicon M340 automation platform
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
