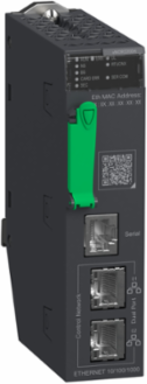

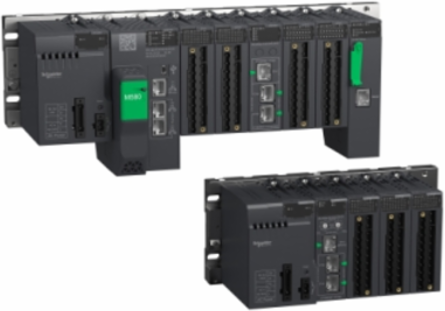

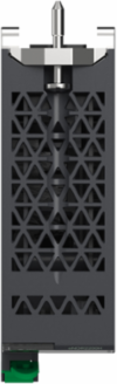

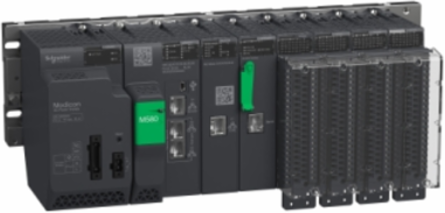

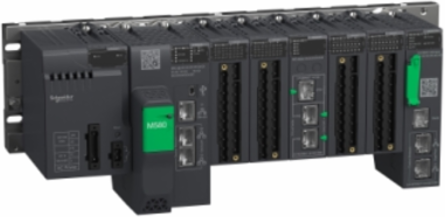

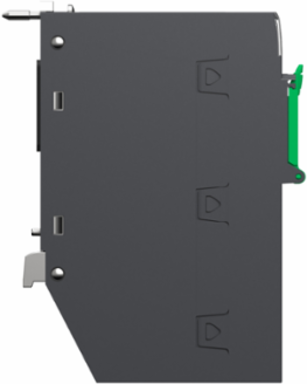

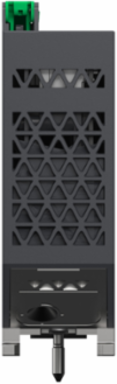

Schneider Electric BMENOR2200H Modicon M580 Communication Module, IP20, -40 to 85 C, 0.345 kg
- MPN: BMENOR2200H
- PPN: SCH-BMENOR2200H
CAD
$2715.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module enables M580 platform to use RTU protocol exchange with RTU stations. It features enhanced cybersecurity. It complies with M580 Hot Standby system. It supports up to 64 devices when module acts as Client/Master. It weighs 0.345kg. It provides enhanced cybersecurity. It complies with DNP3 NET IEC60870-5-104 RTU protocol. The module is delivered in 1 packing unit. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Communications & Management Attributes
- Communication Network Type
- IP forwarding (Front port and backplane), network segmentation, ICMP, NAT
Communication ServiceDNP3 NET server SAv2/SAv5 with pre-shared key, DNP3 NET client SAv2/SAv5 with pre-shared key, IEC 60870-5-101 server/client, IEC 60870-5-104 server/client, Modbus TCP client, web server (HTTPS), HTML5, FDR client, SNTP client, SNMP V1/V3 agent, time stamped events management, automatic events backup on power loss, transparent events routing from remote servers to SCADA, data logging service, IEC60870-5-104 channel redundancy, DNP3 NET multiple session, Crashlog, Modbus TCP server for module diagnostics
Complementary Attributes
- Integrated Connection Type
- 1 RS232 RJ45 115200 bit/s 8 wires1 RS485 RJ45 115200 bit/s 1 twisted shielded pair2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair
Maximum Number Of Modules Per Rack4
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- role-based access control, system hardening, secure communication (HTTPS), Achilles certified, Syslog protocol supporttransport layer security for RTU protocols, SNMP logging, certificate based authentication, network physical isolation, access control list, 802.1X supplicant
- Local Signalling
- 1 LED (green/red) for cyber security (SEC)1 LED (yellow) for serial communication (SER COM)1 LED (red) for download in progress (DL), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR)1 LED (green) for processor running (RUN), 1 LED (green/red) for status of control ethernet (NS), 1 LED (green) for RTU connection status (RTUCNX), 1 LED (green/red) for status of backplane ethernet (BS)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.068259852, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.17506836
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 144 kg CO2 eq., 143.5585714286
- Local Publishable Date
- 2026-02-13
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 137 mA 24 V DC
- Marking
- CE
- Mounting Location
- main rack
- Product Or Component Type
- communication module
- Range Of Product
- Modicon M580
- Shock Resistance
- 30 gn
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Vibration Resistance
- 3 gn
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
- Functional-unit Unit
- EACH
- Energy Consumption On Product Lifetime In Kwh
- 258.5952
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS

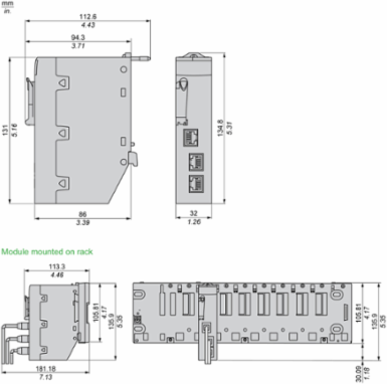

- Height Nominal
- 131 mm
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 566.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Certificate AgencyUKCACE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22UKCA type 1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5449158, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]39 kg CO2 eq., 39.47364
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2309052EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2048
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Backplane Slot LocationEthernet + X-bus Slot
Device Applicationremote monitoring and telecontrol application
Memory Descriptionsupport flash SD memory card (BMXRMS004GPF) 4 GB
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Slot Occupied By Module1
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint184 kg CO2 eq.
Pep CodeENVPEP2309052EN
Pep Verification Date2023-09-27
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %32
Length Total86 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 183.8204554406
- Environmental Disclosure
- ENVPEP2309052EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-09-27
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Product CompatibilityModicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2309052EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2309052EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- communication module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
