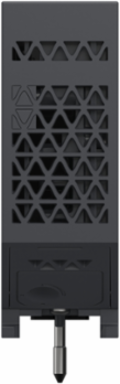

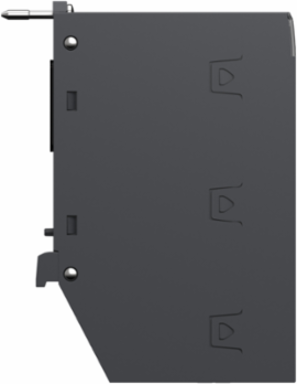

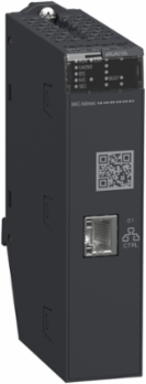

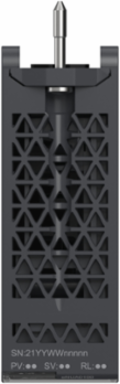

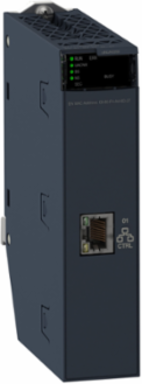

Schneider Electric BMENUA0100 Modicon M580 Communication Module with OPC UA, 86.05 mm Length, IP20

MPN: BMENUA0100
PPN: SCH-BMENUA0100

$2775.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This module is an Ethernet communications module with an embedded OPC UA server for communication with OPC UA clients, including SCADA. It provides complete Ethernet transparency when connected to the Ethernet backplane. OPC UA is a reliable standard for industrial communications. It supports HTTPS protocol. It offers cybersecurity setting service. It weighs 0.383kg. It brings high-performance OPC UA capabilities to Modicon M580 ePAC systems. This product conforms to the OPC UA V1.03 standard. It can be installed either on an Ethernet or a X-bus rack. The module is delivered in 1 packing unit. It can be installed in any X80 Ethernet backplane slot in the head rack of a Modicon M580 ePAC system. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil

Communications & Management Attributes

Communication Network Type	IPV6, IP forwarding (Front port and backplane), service forwarding, network segmentation

Communication Service	Modbus TCP server for module diagnostics, network management SNMP agent V1 and V3, time synchronization NTP V4 - Client and Server

Complementary Attributes

Integrated Connection Type	1 Ethernet port RJ45 10/100/1000 Mbit/s double shielded twisted pair

Maximum Number Of Modules Per Rack	2

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current Consumption	<= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC<= 140 mA 24 V DC, <= 140 mA 24 V DC, <= 140 mA 24 V DC
Function Available	CCOTF (configuration change on the fly), hot swappable module, Advanced diagnostic information (DDT, web pages, OPC UA objects), SCADA connection through Modbus TCP
Opc Ua	OPC UA server, 10 clients connection max, 50000 monitored item max in standard sampling mode, 2000 monitored item max in fast sampling mode, 40 maximum subscriptions per session, 250 ms, minimum publishing interval in standard sampling mode, 20 ms, minimum sampling interval in fast sampling mode, 20 ms, minimum publishing interval in fast sampling mode, 125 ms, sampling interval in standard sampling mode, 100000, maximum number of nodes, hot redundancy mode
Certificate Agency	CE, cULus, RCM, UKCA, EAC, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.52195, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	38 kg CO2 eq., 37.81
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Manufacturing Carbon Footprint	37.81
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2309052EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2048
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Backplane Slot Location	Ethernet + X-bus Slot
Environmental Characteristic	hazardous location class I division 2
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	standard version
Returnability	Yes
Slot Occupied By Module	1
Supply	internal power supply via rack
Total Lifecycle Carbon Footprint	186 kg CO2 eq.
Vibration Resistance	3 gn
Pep Code	ENVPEP2309052EN
Pep Verification Date	2023-09-27
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS

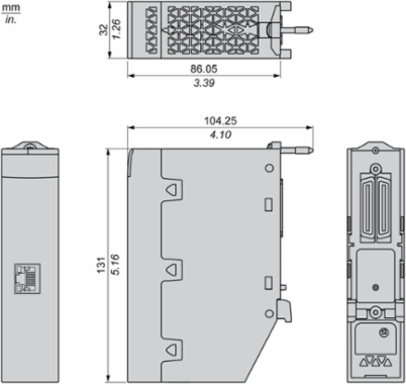

Height Nominal	131 mm
Width Nominal	32 mm
Package Weight(Lbs)	530.000 g
Warranty (In Months)	18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]	146.93
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]	37.81
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]	-1.1566
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	434.07
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	13.973
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	551.87
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]	102.66
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	87.186
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-5.4271
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]	4.8537
Net Use Of Fresh Water (M3) End Of Life [C1-c4]	1.3659
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	22.412
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]	1.2644
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	434.07
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]	13.973
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	450.74
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	14.201
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	16.672
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-0.6512
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	3.7311
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	430.34
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	13.973
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	2.7887
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	13.884
Customs Code	8517620090

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Cybersecurity	secure communication (HTTPS), built-in firewall, certificate based authentication, system hardening, role-based access control, Syslog protocol support, IPSec (initiator and responder role), network physical isolation, Achilles level 2 tested
Local Signalling	1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR)1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status), 1 LED (green/red) for status (STS)1 LED (yellow) for communication data bus
Source Timestamping	only digital IOs or variables, 250 ms, minimum polling of buffer, 5000 ms, maximum polling of buffer
Carbon Footprint Of The Distribution Phase [A4]	0.065383, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.2 kg CO2 eq., 0.16769
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	147 kg CO2 eq., 147.06
Local Publishable Date	2026-01-23
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Use Carbon Footprint	147.06
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Device Application	OPC UA server & IT control network
Exchange Mode	half duplex and full duplex
Mounting Location	main rack
Product Or Component Type	communication module
Range Of Product	Modicon M580
Shock Resistance	30 gn
Software Version	v5.9.4
Sustainable Packaging	Yes
Transmission Support Medium	Ethernet backplane
Web Server	for commissioning, operational and maintenance
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The OPC UA module allows data communication with any Client in accordance with the OPC UA Client/Server standard. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 3,36W (140 mA at 24 V DC).& 10& 10IEC 61000-6-5, IEC 61850-3
Functional-unit Unit	EACH
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	32
Length Total	86.05 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]	37.763
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]	-1.1286
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]	147.06
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	3490.4035
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	3041.2
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]	-17.257
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	1950.4
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]	-72.48
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	3.2189
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]	1.845
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]	114.16
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	14.483
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]	-1.8272
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	3490.4035
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	3041.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-17.257
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	3475.6
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-17.909
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	434.44
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3.7311
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3486.6735
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	3041.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-17.257
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	2.7887
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	434.44

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Product Compatibility	Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..), Modicon M580 safety CPU (non interfering type 1) (BMEP582…..), Modicon M580 safety Redundant CPU (non interfering type 1) (BMEH582…..), Modicon X80 Rack with Ethernet backplane (BMEXBP…..)
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	185.625023
Circularity Profile	ENVEOLI2309052EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2023-09-27
Psr Version	PSR-0005-ed2-2016 03 29

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2309052EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2309052EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
