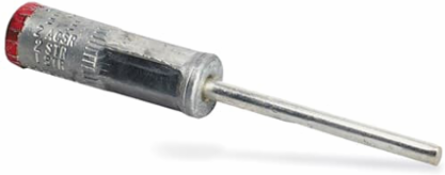

Blackburn PCS67 Compression Pin Terminal Pigtail 0.204 x 2.5 Inch Aluminum, 35 kV
- MPN: PCS67
- UPC: 783786050413
- PPN: T-B-PCS67
- UNSPSC: 39121458
CAD
$19.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Compression Pin Terminal Aluminum, Contax filled for Wire Range 4 ASCR, 4 Stranded - 2 Solid, Pigtail: 0.204 x 2.5, Mechanical Dies: Peach, 5/8, BG, TU, Hydraulic Dies: U-BG, 52
Specifications
Additional Information
- Application
- Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings
- Connection Type
- Compression
- Insulation Material
- None
- Mounting Type
- None
- Pigtail Size
- 13/64 x 2-1/2 in
- Product Type
- Pigtail Compression Sleeve
- Special Functions
- Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor.
- Voltage Rating
- 35 kV
Brand / LabelBlackburn
Effective Date19991027
MaterialAluminum Sleeve, Pre-attached Copper Pigtail
Number of Conductors2
Product NamePIGTAIL COMPRESSION SLEEVES
SizeSleeve Length 2 inches
Surface FinishingTinplated Pigtail
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4685 >> Wire or cable compression reducer
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
