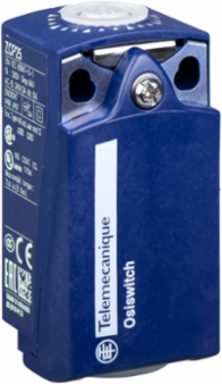

Telemecanique Sensors ZCP25 Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, slow break
Telemecanique Sensors ZCP25 Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, slow break
- MPN: ZCP25
- PPN: TES-ZCP25
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$32.78/ EA
Description
This ZCP body/contact assembly has standard contacts and a plastic body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKP
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110603EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110606EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 31 mm
- Depth
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Minimum Actuation Speed6 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCPEF12 || ZCPEP20 || ZCPEG13 || ZCPEG11 || ZCPEP16 || ZCPEN12
Net Weight0.07 kg
Specifications
- Series Name
- Standard compact
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- slow-break, break before make
- Body Material
- plastic
- Design
- compact
- Number Of Poles
- 2
Contacts Type And Composition1 NC + 1 NO
Body Typefixed
Associated HeadZCE64 || ZCE62 || ZCE27 || ZCE28 || ZCE65 || ZCE11 || ZCE14 || ZCE10 || ZCE67 || ZCE06 || ZCE24 || ZCE29 || ZCE63 || ZCE01 || ZCE05 || ZCEH0 || ZCE02 || ZCE13 || ZCE08 || ZCE07 || ZCE21 || ZCEH2 || ZCE66
Product Or Component Typelimit switch body
Device Short NameZCP
