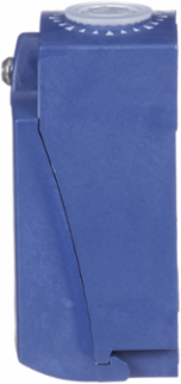

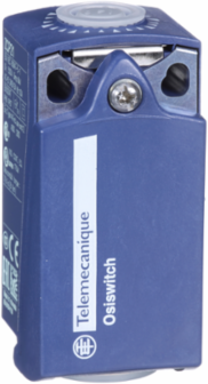

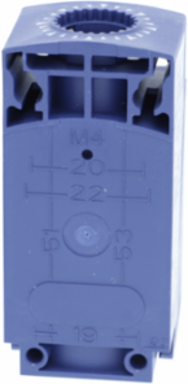

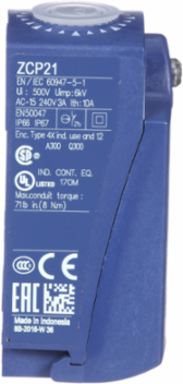

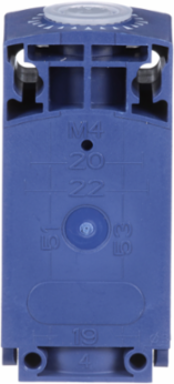

Telemecanique Sensors ZCP21 Osiswitch, limit switch body, ZCP, compact body, 1 NC and 1 NO, snap action

MPN: ZCP21
PPN: TES-ZCP21
UNSPSC: 39122213

$24.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

OsiSense XC compact modular metal limit switches meet the European standard (EN50047) for positive opening contacts, even in snap action versions which allow use in safety applications. XCKD range has a wide range of body types, different types of heads, and many limit switch arms that can be purchased as complete limit switches or as subcomponents that can be assemblied by the user to meet their specific requirement. OsiSense XC compact modular metal limit switches are often used in the packaging, materials handling, conveying, machining, food and beverage, service sector, and many more applications. These limit switches are UL Listed, CSA Certified, meet the appropriate IEC standards and are CCC.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch body
Series Name	Standard compact
Body Type	fixed
Body Material	plastic
Number Of Poles	2

Associated Head	ZCE06 \|\| ZCE28 \|\| ZCE63 \|\| ZCE01 \|\| ZCE02 \|\| ZCE66 \|\| ZCE14 \|\| ZCE11 \|\| ZCE27 \|\| ZCEH2 \|\| ZCE09 \|\| ZCE67 \|\| ZCE08 \|\| ZCE07 \|\| ZCE24 \|\| ZCEH0 \|\| ZCE21 \|\| ZCE64 \|\| ZCE29 \|\| ZCE62 \|\| ZCE65 \|\| ZCE13 \|\| ZCE10 \|\| ZCE05
Design	compact
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	snap action
Device Short Name	ZCP

Complementary

Height	65-65 mm
Minimum Actuation Speed	0.01 m/s
Contacts Material	silver plated contacts
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Contacts Insulation Form	Zb
Width	31 mm
Depth	30 mm

Short-Circuit Protection	10 A cartridge fuse gG
Electrical Connection	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Net Weight	0.07 kg
Electrical Durability	5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Contact Code Designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Associated Connection Component	ZCPEP20 \|\| ZCPEN12 \|\| ZCPEF12 \|\| ZCPEG11 \|\| ZCPEP16 \|\| ZCPEG13

Environment

Ambient Air Temperature For Operation	-25-70 °C
Product Compatibility	XCKP

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110606EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
