Telemecanique Sensors SR2PACKBD Zelio Logic Smart Relay Pack, 12 I/Os, 24V DC, IP40 Rated
Telemecanique Sensors SR2PACKBD Zelio Logic Smart Relay Pack, 12 I/Os, 24V DC, IP40 Rated
- MPN: SR2PACKBD
- PPN: SCH-SR2PACKBD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$357.34/ EA
Description

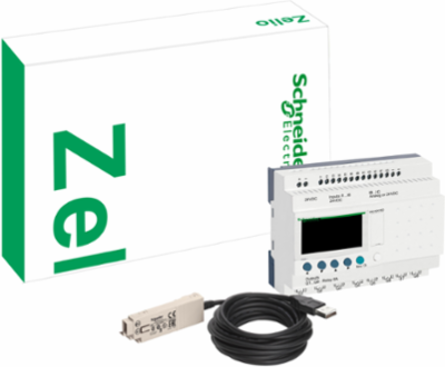

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 12 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 8 resistive discrete inputs with voltage of 24V DC, 4 analogue input ranges from 0V to 10V, 0V to 24V and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- CSA || C-Tick || UL || GOST || GL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 1 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 61000-4-4 level 3 || IEC 61000-4-12 || IEC 61000-4-5 || IEC 60068-2-6 Fc || IEC 61000-4-2 level 3 || IEC 61000-4-6 level 3 || IEC 61000-4-3 || IEC 61000-4-11 || IEC 60068-2-27 Ea
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Type
- resistive
- Conversion Error
- +/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
- Number Or Control Scheme Lines
- 120-120 ladder || 0-200 FBD
- Discrete Input Voltage
- 24 V DC
- Clock Drift
- 12 min/year 0-55 °C || 6 s/month 25-25 °C
- Discrete Input Current
- 4 mA
- Response Time
- 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
- Power Dissipation In W
- 3 W without extension
- Net Weight
- 0.7 kg
- Voltage State 0 Guaranteed
- <= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit
- Conversion Time
- smart relay cycle time analogue input circuit
- Analogue Input Number
- 4
- Voltage State 1 Guaranteed
- >= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
- Current State 0 Guaranteed
- <= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
- Operating Distance
- 10 m between stations, with screened cable (sensor not isolated) analogue input circuit
- Mechanical Durability
- 10000000 cycles relay output
- Tightening Torque
- 0.5 N.m
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
- Counting Frequency
- 1 kHz discrete input
- Kit Composition
- SR2B121BD || cable PC SR2USB01 for connection to PC
- Maximum Permissible Voltage
- 30 V analogue input circuit
- [Us] Rated Supply Voltage
- 24 V
Input Impedance12 kOhm IB...IG used as analogue input circuit || 12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
Analogue Input Range0...10 V || 0...24 V
Output Thermal Current8 A for all 4 outputs relay output
Lsb Value39 mV analogue input circuit
Backup Time10 years 25 °C
Analogue Input Typecommon mode
Current State 1 Guaranteed>= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Clockwith
Local Displaywith
Input/Output Number12
Output Voltage Limits24...250 V AC relay output) || 5...30 V DC relay output)
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Input Compatibility3-wire proximity sensors PNP discrete input
Supply Voltage Limits19.2-30 V
Overvoltage CategoryIII IEC 60664-1
Maximum Supply Current100 mA without extension)
Temperature Probe TypeNTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
Analogue Input Resolution8 bits
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time6-90 ms
Reverse Polarity Protectionwith
Repeat Accuracy+/- 2 % 55 °C analogue input circuit
Checksprogram memory on each power up
Specifications
- Range Of Product
- Zelio Logic
- Product Or Component Type
- compact discovery packs
Number Of Outputs4 relay
Discrete Input Number8 IEC 61131-2 Type 1
