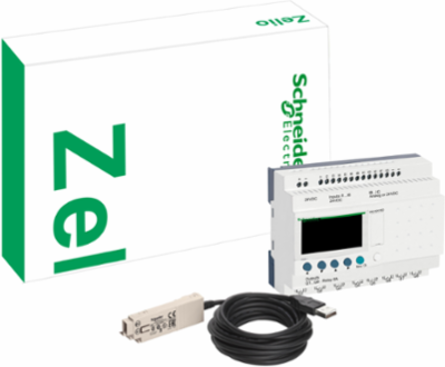

Schneider Electric SR3PACK2BD Zelio Logic Smart Relay Discovery Pack, 26 IO, 24V DC

  • MPN: SR3PACK2BD
  • PPN: SCH-SR3PACK2BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $549.12

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Zelio Logic SR3 discovery pack compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. This discovery package includes one copy of Zelio Soft and one USB cable to connect the relay to your PC. Its simple ladder programming makes it adapted for non-specialists.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France

    Complementary Attributes

    Maximum Altitude Transport3048 m
    Maximum Supply Current190 mA without extension)300 mA with extensions)
    Maximum Permissible Voltage30 V analogue input circuit

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Conversion Error+/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit
    Current State 1 Guaranteed>= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)>= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
    Kit Compositioncable PC SR2USB01 for connection to PC, SR3B261BD
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 0 Guaranteed<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit, <= 5 V IB...IG used as discrete input circuit<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit
    Certificate AgencyGOST, GL, UL, CSA, C-tick
    Carbon Footprint Of The Distribution Phase [A4]1.0383237635298117, 1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.09828585209085688, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]195 kg CO2 eq., 195.24214385882985
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Checksprogram memory on each power up
    Clock Drift12 min/year 0-55 °C6 s/month 25-25 °C
    Conversion Timesmart relay cycle time analogue input circuit
    Cycle Time6-90 ms
    Immunity To Microbreaks1 ms
    Lsb Value39 mV analogue input circuit
    Number Or Control Scheme Lines120-120 ladder0-200 FBD
    Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
    Power Dissipation In W10 W with extensions6 W without extension
    Product Or Component Typemodular discovery packs
    Response Time10 ms from state 0 to state 1)relay output5 ms from state 1 to state 0)relay output
    Reverse Polarity Protectionwith
    Supply Voltage Limits19.2-30 V
    Tightening Torque0.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh525.6
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Us] Rated Supply Voltage24 V
    Input/Output Number26
    Package Weight(Lbs)531.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 0 Guaranteed<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)
    Environmental CharacteristicEMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone Blow voltage directive IEC 61131-2
    Repeat Accuracy+/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit+/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit
    Temperature Probe TypeNTC 10k 25 °C, NTC 1000k 25 °C, KTY81 210/220/221/222/250, Pt 500
    Voltage State 1 Guaranteed>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit, >= 15 V IB...IG used as discrete input circuit>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
    Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.3097700905340328
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]64 kg CO2 eq., 64.07097258819692
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Contacts Type And CompositionNO relay output
    Counting Frequency1 kHz discrete input
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Local Displaywith
    Mechanical Durability10000000 cycles relay output
    Operating Distance10 m between stations, with screened cable (sensor not isolated) analogue input circuit
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductZelio Logic
    ReturnabilityYes
    Software Versionv6.2.2
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint262 kg CO2 eq.
    Pep CodeENVPEP0604006EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Uimp] Rated Impulse Withstand Voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
    Disturbance Radiated/Conductedclass B EN 55022-11 group 1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536410060

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint261.75949615318143
    Environmental DisclosureENVPEP0604006EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP0604006EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI0604006EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typemodular discovery packs
    Range Of ProductZelio Logic

    ETIM

    ETIM 8EC002581
    ETIM 9EC002581

    Output Attributes

    Output Thermal Current5 A for 2 outputs relay output, 8 A for 8 outputs relay output
    Output Voltage Limits24...250 V AC relay output)5...30 V DC relay output)
    Number Of Outputs10 relay

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Analogue Input Range0...10 V, 0...24 V
    Analogue Input Number6
    Analogue Input Typecommon mode
    Discrete Input Number16 IEC 61131-2 Type 1
    Discrete Input Voltage24 V DC
    Input Impedance12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit7.4 kOhm I1...IA and IH...IR discrete input circuit
    Analogue Input Resolution8 bits
    Discrete Input Current4 mA
    Discrete Input Typeresistive
    Input Compatibility3-wire proximity sensors PNP discrete input
    Zelio Logic Smart Relay Discovery Pack, 26 IO, 24V DC
