Schneider Electric SR2B121FU Zelio Logic Compact Smart Relay, 12 IO, 100-240V AC, LCD Display

  • MPN: SR2B121FU
  • PPN: SCH-SR2B121FU
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $271.11

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

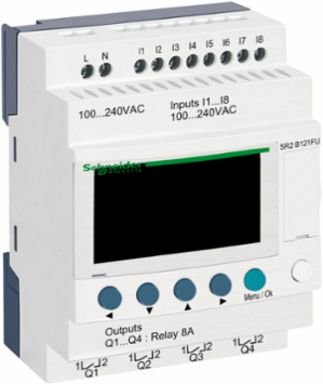

    This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 12 inputs / outputs with screw-clamp terminals, has an integrated clock and LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

    Features

    • The Schneider Electric SR2B121FU is a part of the Zelio Logic 2 family. It is a "smart relay" or "mini-PLC" designed for small automation systems where a full-scale industrial PLC would be overkill. It s a favorite in Canada for controlling small packaging machines, lighting systems, HVAC sequencing, and pump management.
    • This unit features a total of 12 Input/Output points: 8 Digital Inputs: Used for receiving signals from push buttons, limit switches, or sensors. 4 Relay Outputs: These are "dry contact" outputs capable of switching up to 8 Amps, allowing the Zelio to directly drive small motors, contactor coils, or pilot lights without needing interposing relays.
    • The "FU" suffix indicates a wide-range AC power supply. It can be powered by any voltage between 100V and 240V AC. This is ideal for Canadian applications because the unit can be wired directly to standard 120V control power or 208/240V single-phase power without the need for an external 24V DC power supply.

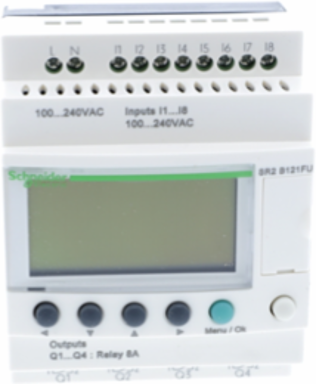

    • The SR2B121FU includes a built-in backlit LCD display and navigation buttons. This allows maintenance staff in Canadian facilities to check the status of inputs/outputs, adjust timer settings, or change setpoints directly on the face of the device without needing to plug in a laptop.
    • The Zelio can be programmed in two ways: 1. Function Block Diagram (FBD): Best for users comfortable with logic gates and flowcharts. 2. Ladder Diagram (L/D): The industry standard for electricians and maintenance teams familiar with traditional relay logic. Programming is done via the free Zelio Soft 2 software or directly through the front keypad for very simple logic changes.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France

    Complementary Attributes

    Maximum Altitude Transport3048 m
    Maximum Supply Current30 mA 240 V without extension)80 mA 100 V without extension)

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Current State 0 Guaranteed<= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
    Environmental CharacteristicEMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
    Response Time50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
    Voltage State 0 Guaranteed<= 40 V discrete input, <= 40 V discrete input<= 40 V discrete input, <= 40 V discrete input
    Certificate AgencyGL, GOST, UL, CSA, C-tick
    Carbon Footprint Of The Distribution Phase [A4]0.48838938016889794, 0.5 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.046230056623997685
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]164 kg CO2 eq., 164.00340084141706
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Checksprogram memory on each power up
    Clock Drift12 min/year 0-55 °C6 s/month 25-25 °C
    Cycle Time6-90 ms
    Immunity To Microbreaks10 ms
    Local Displaywith
    Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
    Power Consumption In Va7 VA without extension
    Product Or Component Typecompact smart relay
    Range Of ProductZelio Logic
    Software Versionv6.2.2
    Supply Voltage Limits85-264 V
    Tightening Torque0.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    Disturbance Radiated/Conductedclass B EN 55022-11 group 1
    Package Weight(Lbs)246.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 1 Guaranteed>= 0.17 mA discrete input), >= 0.17 mA discrete input)>= 0.17 mA discrete input), >= 0.17 mA discrete input)
    Number Or Control Scheme Lines0-240 ladder, 0-500 FBD
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 1 Guaranteed>= 79 V discrete input, >= 79 V discrete input>= 79 V discrete input, >= 79 V discrete input
    Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6160677672492774, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]30 kg CO2 eq., 30.136633378004667
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Contacts Type And CompositionNO relay output
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Isolation Voltage1780 V
    Mechanical Durability10000000 cycles relay output
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typeagainst inversion of terminals (control instructions not executed)
    ReturnabilityYes
    Supply Frequency50/60 Hz
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint195 kg CO2 eq.
    Pep CodeENVPEP0604006EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Us] Rated Supply Voltage100...240 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109160

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint195.2907214234639
    Environmental DisclosureENVPEP0604006EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP0604006EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI0604006EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typecompact smart relay
    Range Of ProductZelio Logic

    ETIM

    ETIM 8EC001417
    ETIM 9EC001417

    Output Attributes

    Number Of Outputs4 relay
    Output Voltage Limits5...30 V DC relay output)24...250 V AC
    Output Thermal Current8 A for all 4 outputs relay output

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Frequency47...53 Hz, 57...63 Hz
    Discrete Input Current0.6 mA
    Discrete Input Voltage100...240 V AC
    Analogue Input Number0
    Discrete Input Number8
    Input Impedance350 kOhm discrete input

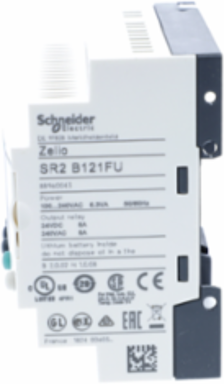

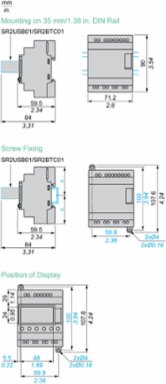

    Zelio Logic Compact Smart Relay, 12 IO, 100-240V AC, LCD Display

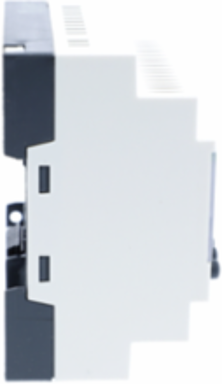

    Zelio Logic Compact Smart Relay, 12 IO, 100-240V AC, LCD Display

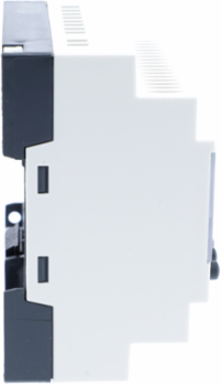

    Zelio Logic Compact Smart Relay, 12 IO, 100-240V AC, LCD Display

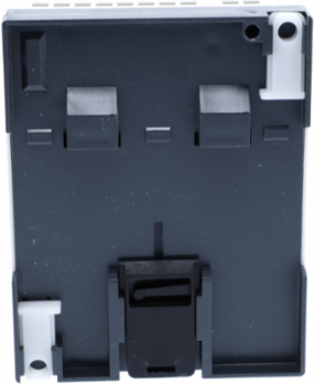

    Zelio Logic Compact Smart Relay, 12 IO, 100-240V AC, LCD Display
