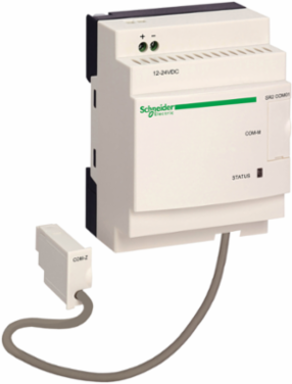

Telemecanique Sensors SR2COM01 Zelio Logic Modem Communication Interface, 12V-24V DC, IP20/IP40
- MPN: SR2COM01
- PPN: SCH-SR2COM01
CAD
$288.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
- Data Backed Up
- flash memory
Product Or Component Typemodem communication interface
Complementary
- Electrical Connection
- 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands || 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
- Electrical Data Recording
- discrete and digital value || telephone/e-mail || date and time
- Function Available
- update firmware monitoring || send alarm to e-mail address || send alarm/receive instruction || transfer program
- Power Dissipation In W
- 1.1 W
- Tightening Torque
- 0.5 N.m
- Kit Composition
- 1 x SR2CBL07 || modem communication interface
- Reverse Polarity Protection
- with
- Associated Fuse Rating
- 1 A
Net Weight0.2 kg
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Supply Voltage Limits10-28.8 V
Maximum Supply Current30 mA 12 V || 30 mA 24 V || 550 A
Product CompatibilitySR2E..... || SR.B.....
Number Of Messages28
Insulation1780 V optocoupler Com-Z specific to Zelio || by the cable SR2 CBL07 Com-M specific to Zelio
[Us] Rated Supply Voltage12...24 V DC
Environment
- Product Certifications
- GOST || CSA || C-Tick || UL
- Disturbance Radiated/Conducted
- class B IEC 55022-11 Group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-11 || IEC 61000-4-3 || IEC 60068-2-27 Ea || IEC 61000-4-4 level 3 || IEC 61000-4-12 || IEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 61000-4-6 level 3 || IEC 60068-2-6 Fc
Ambient Air Temperature For Operation-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
