Telemecanique Sensors SR3PACKBD Zelio Logic Smart Relay Discovery Pack, 10 I/O, 24V DC, IP20/IP40

  • MPN: SR3PACKBD
  • PPN: SCH-SR3PACKBD

CAD

$357.34

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 10 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 6 resistive discrete inputs with voltage of 24V DC and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Documentation & Downloads

Specifications

Key Specifications

Range Of ProductZelio Logic
Product Or Component Typemodular discovery packs
Number Of Outputs4 relay
Discrete Input Number6 IEC 61131-2 Type 1

Complementary

Contacts Type And CompositionNO relay output
Discrete Input Typeresistive
Conversion Error+/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
Number Or Control Scheme Lines120-120 ladder || 0-200 FBD
Discrete Input Voltage24 V DC
Clock Drift12 min/year 0-55 °C || 6 s/month 25-25 °C
Discrete Input Current4 mA
Response Time10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Power Dissipation In W3 W without extension || 8 W with extensions
Net Weight0.7 kg
Voltage State 0 Guaranteed<= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit || <= 5 V
Conversion Timesmart relay cycle time analogue input circuit
Analogue Input Number4
Voltage State 1 Guaranteed>= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
Current State 0 Guaranteed<= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
Operating Distance10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Mechanical Durability10000000 cycles relay output
Tightening Torque0.5 N.m
Switching Capacity In Ma>= 10 mA 12 V relay output)
[Uimp] Rated Impulse Withstand Voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Counting Frequency1 kHz discrete input
Kit CompositionSR3B101BD || cable PC SR2USB01 for connection to PC
Maximum Permissible Voltage30 V analogue input circuit
[Us] Rated Supply Voltage24 V
Input Impedance12 kOhm IB...IG used as analogue input circuit || 12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
Analogue Input Range0...24 V || 0...10 V
Output Thermal Current8 A for all 4 outputs relay output
Lsb Value39 mV analogue input circuit
Backup Time10 years 25 °C
Analogue Input Typecommon mode
Current State 1 Guaranteed>= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Clockwith
Local Displaywith
Input/Output Number10
Output Voltage Limits24...250 V AC relay output) || 5...30 V DC relay output)
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Input Compatibility3-wire proximity sensors PNP discrete input
Supply Voltage Limits19.2-30 V
Overvoltage CategoryIII IEC 60664-1
Maximum Supply Current100 mA with extensions) || 100 mA without extension)
Temperature Probe TypeNTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500
Analogue Input Resolution8 bits
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time6-90 ms
Reverse Polarity Protectionwith
Repeat Accuracy+/- 2 % 55 °C analogue input circuit
Checksprogram memory on each power up

Environment

Product CertificationsGL || UL || CSA || GOST || C-Tick
Disturbance Radiated/Conductedclass B EN 55022-11 group 1
Immunity To Microbreaks1 ms
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
StandardsIEC 60068-2-27 Ea || IEC 60068-2-6 Fc || IEC 61000-4-3 || IEC 61000-4-6 level 3 || IEC 61000-4-11 || IEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 61000-4-12 || IEC 61000-4-4 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m

Contractual warranty

Warranty18 months

Offer Sustainability

Rohs Exemption InformationYes
Environmental DisclosureENVPEP060406EN
Pvc FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

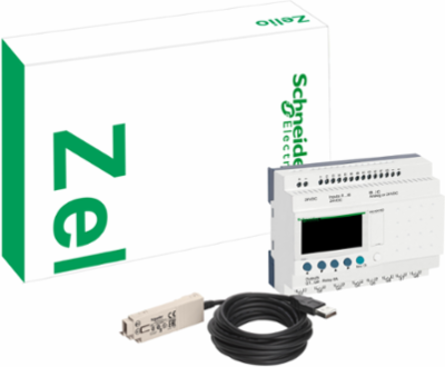

Zelio Logic Smart Relay Discovery Pack, 10 I/O, 24V DC, IP20/IP40
