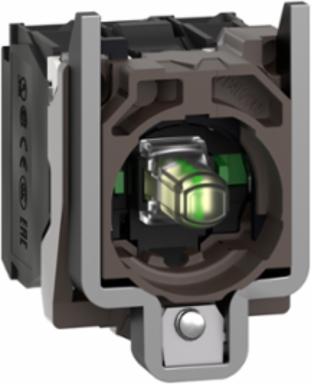

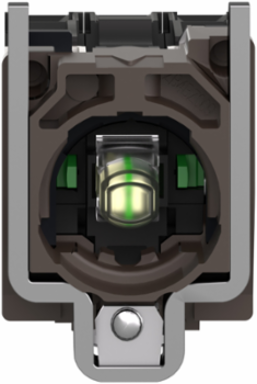

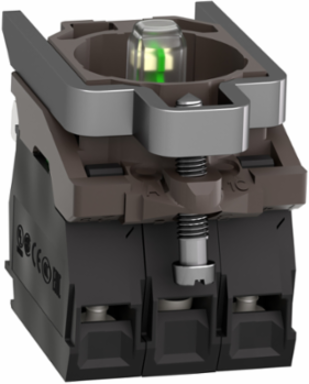

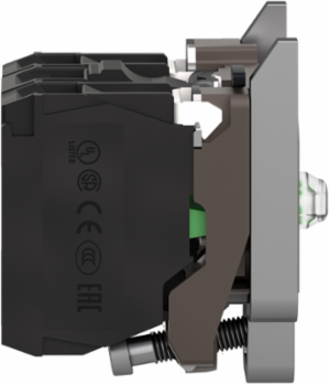

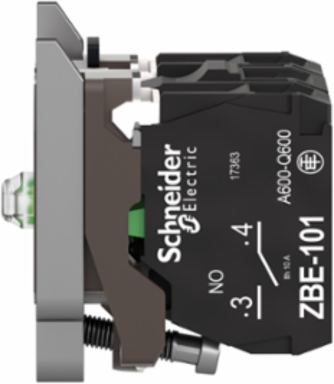

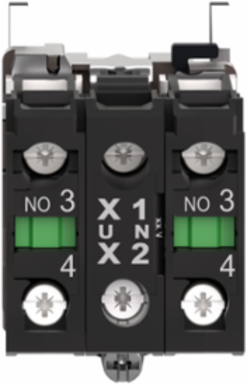

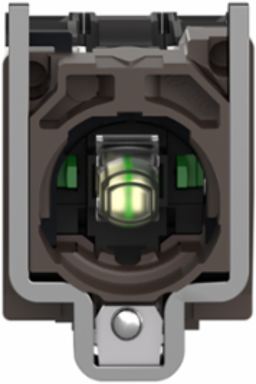

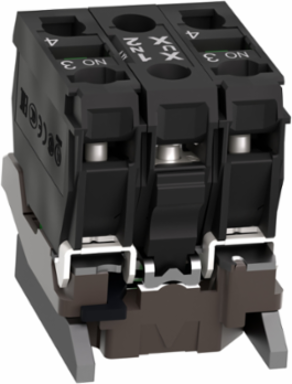

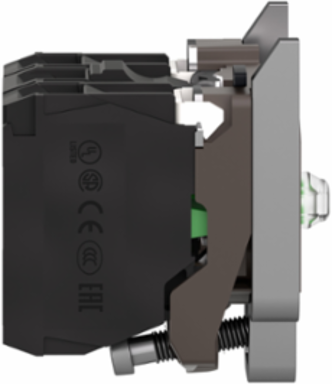

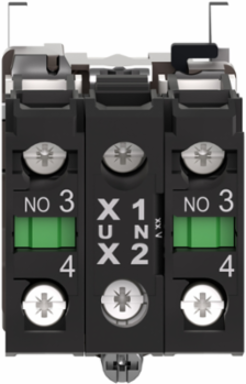

Schneider Electric ZB4BW0M13 Harmony XB4 Complete Body Contact Assembly with Universal LED, 230-240V, 2NO
- MPN: ZB4BW0M13
- PPN: SCH-ZB4BW0M13
CAD
$92.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for seamless integration with automation and control systems, this contact assembly from Schneider Electric features a complete body configuration that enhances operational efficiency. The Harmony XB4 model is equipped with a universal LED indicator, ensuring clear visibility across various applications, particularly in environments requiring reliable signaling. Operating within the 230-240V range, it provides two normally open contacts (2NO), making it an ideal choice for diverse signaling and control functions in industrial settings. With its robust construction and versatile design, this assembly stands out as a critical component for enhancing operational workflows and safety in automated processes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Physical Attributes
| Light Source Color | white, white |
|---|---|

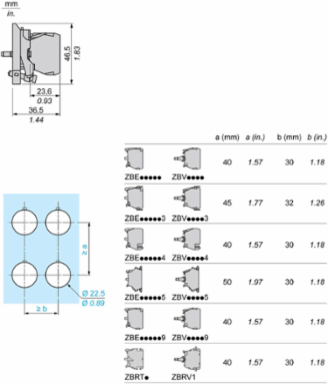

| Cad Overall Width | 30 mm |
| Cad Overall Height | 47 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Contacts Composition | 2 NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1166189084 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5268216374 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 37 % |
| Compatibility Code | ZB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard |
| Device Short Name | ZB4 |
| Electromagnetic Emission | class B IEC 55011 |
| Head Type | standard |
| Mechanical Durability | 5000000 cycles |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Positive Opening | without |
| Product Or Component Type | complete body/contact assembly and light block |
| Range Of Product | Harmony XB4 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Signalling Type | steady |
| Supply Voltage | 230...240 V |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 49 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Light Source | universal LED, universal LED |
| Light Source Color | white, white |
| Certificate Agency | DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA |
| [Us] Rated Supply Voltage | 230...240 V, 230...240 V AC 50/60 Hz |
| Carbon Footprint Of The Distribution Phase [A4] | 0.011197271, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0102912281, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 48 kg CO2 eq., 48.2200262748 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1808008EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 21 % |
| Bulb Base | integral LED |
| Contact Operation | slow-break |
| Contacts Type And Composition | 2 NO |
| Current Consumption | 14 mA |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Fixing Collar Material | zamak |
| Light Block Supply | direct |
| Operating Force | 2.3 N NO changing electrical state |
| Operating Travel | 2.6 mm NO changing electrical state)4.3 mm total travel) |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Software Version | v5.9.4 |
| Supply Voltage Limits | 195-264 V AC |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP1808008_V2-EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 70.0 g |
| Warranty (In Months) | 18 |
