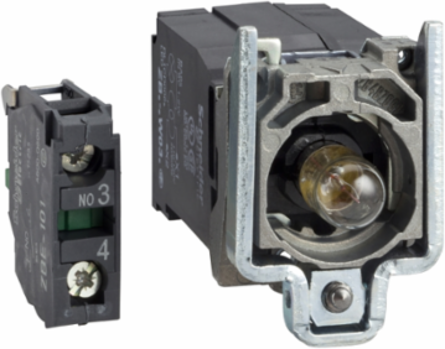

Schneider Electric ZB4BW051 Harmony XB4 Complete Body/Contact Assembly with 400V, 1NO, BA9s Bulb
Schneider Electric ZB4BW051 Harmony XB4 Complete Body/Contact Assembly with 400V, 1NO, BA9s Bulb
- MPN: ZB4BW051
- PPN: SCH-ZB4BW051
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$121.65/ EA
Description
The Schneider Electric Harmony XB4 is an essential component for those seeking reliability and functionality in automation and control systems. This complete body and contact assembly offers a robust solution with a rated capacity of 400V, supporting a single normally open (1NO) contact configuration. Designed to work seamlessly with BA9s bulbs, it ensures efficient operation and compatibility across various applications. Ideal for pilot devices and light blocks, this assembly combines durability with high performance, making it a vital addition to any control panel.
Specifications
- Voltage
- 400 V AC 50 Hz
- Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 6 kV EN 60947-1
- Operating Travel
- 2.6 mm NO changing electrical state, 4.3 mm total travel
- Operating Torque
- 0.05 N.m NO changing electrical state

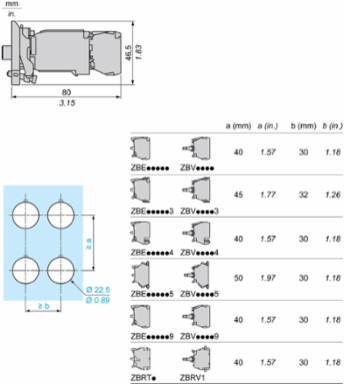

- CAD Overall Height
- 47 mm
- Net Weight
- 0.141 kg
- Fixing Collar Material
- zamak
- Light Source
- incandescent
- Mechanical Durability
- 5,000,000 cycles
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- Electrical Shock Protection Class
- Class I IEC 60536
- Product Certifications
- UL listed, LROS, DNV, CSA, GL, BV
- Ambient Air Temperature for Operation
- -40 to 70 B0C
- Head Type
- standard
- Product Or Component Type
- complete body/contact assembly and light block
- Environmental Disclosure
- ENVPEP1808008EN
- Rohs Exemption Information
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Range Of Product
- Harmony XB4
- Positive Opening
- without
Rated Operational Current3 A 240 V AC-15, 6 A 120 V AC-15, 0.1 A 600 V DC-13, 0.27 A 250 V DC-13, 0.55 A 125 V DC-13, 1.2 A 600 V AC-15
Rated Insulation Voltage600 V
Contact Operationslow-break
Operating Force2.3 N NO changing electrical state
Tightening Torque0.8-1.2 N.m EN 60947-1
CAD Overall Width30 mm
Contacts Materialsilver alloy (Ag/Ni)
Bulb BaseBA 9s
Connections - Terminalsscrew clamp terminals, 1 x 1.5 mm8with cable end, x 0.22 mm8without cable end EN 60947-1
Electrical Durability1,000,000 cycles AC-15
Shock Resistance30 gn 18 ms, 50 gn 11 ms half sine wave acceleration IEC 60068-2-27
Standards ComplianceEN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1
Mercury FreeYes
Ambient Air Temperature for Storage-40 to 70 B0C
Contacts Usagestandard
Circularity ProfileENVEOLI1808008EN
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer StatusGreen Premium product
Device Short NameZB4
Signalling Typesteady
