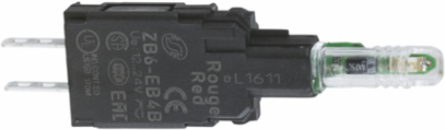

Schneider Electric ZB6EG5B Harmony XB6 Complete Pilot Light Body, Yellow LED, 48-120V AC, 14mm Height

MPN: ZB6EG5B
PPN: SCH-ZB6EG5B
UNSPSC: 39122216

$26.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This light module is for a 16mm pilot light. This is a yellow 48V to 120 V LED light module with collar. Light module has 2.8 x 0.5 mm faston connectors. Light module is 0.61 inches tall, 0.24 inches wide and 2.28 inches deep. Light module weighs 0.01 lbs. Light module is UL and CSA certified. "It is ideal for control boards, surveillance rooms, alarms, small finishing machines, local and remote control panels." "This product is certified by CCC, CSA, UL and GOST. It meets JIS C 4520, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508 and EN/IEC 60947-5-1 standards." "It is sold in 5 per indivisible quantity." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."

Features

Pilot light with 'protected LED'
The light module offers steady signaling
Compact size
Flexibility and simplicity setup
Wide range of operating temperature from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Physical Attributes

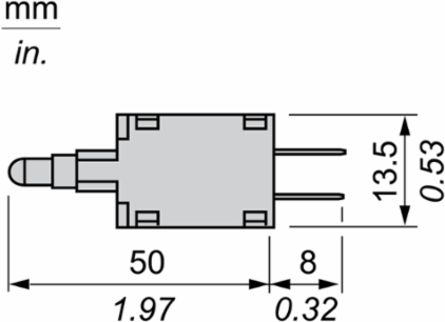

Cad Overall Depth	58 mm

Cad Overall Height	14 mm

Complementary Attributes

Ui Rated Insulation Voltage	250 V 3)IEC 60947-1
Us Rated Supply Voltage	48...120 V AC

Uimp Rated Impulse Withstand Voltage	4 kV IEC 60947-1

Important Information Attributes

Vibration Resistance	+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1	(X1-X2)PL, (X1-X2)PL
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	ZB6
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Block Supply	direct
Operating Position	any position
Product Or Component Type	complete body for pilot lights
Range Of Product	Harmony XB6
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits	40-132 V AC
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals	Faston connectors 2.8 x 0.5 mm
Customs Code	8531809051

Certificate Agency	GOST, CSA, CCC, UL
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bulb Base	integral LED
Device Short Name	ZB6
Electromagnetic Emission	class B IEC 55011
Light Source	LED
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Sale Per Indivisible Quantity	5
Signalling Type	steady
Sustainable Packaging	Yes
Light Source Color	yellow
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
