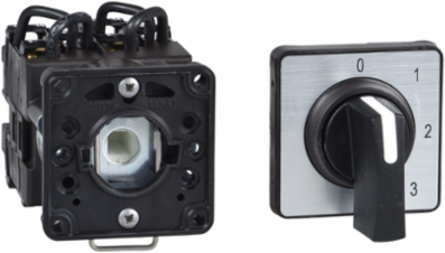

Schneider Electric K2D012UCH Harmony K Cam Changeover Switch 2 Poles 20A 30° 22mm
- MPN: K2D012UCH
- PPN: SCH-K2D012UCH
CAD
$88.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric K2D012UCH Harmony K Cam Changeover Switch is a robust and reliable solution designed for versatile control in automation and industrial applications. With its two-pole configuration and 20A rating, this switch can efficiently handle moderate loads while connecting circuits or switching functions seamlessly at a gentle 30°. Its 22mm mounting allows for straightforward integration into various panels, making it an ideal choice for both new installations and upgrades. This switch exemplifies Schneider Electric's commitment to quality and durability, ensuring dependable performance in demanding environments.
Documentation & Downloads
Specifications
Additional
- Poles
- 2P
- Conventional Enclosed Thermal Current
- 16 A
- Short-Circuit Current
- 10000 A
- Maximum Operating Rate
- 2.5 cyc/mn AC-21, AC-23, AC-3; 8.333 cyc/mn AC-15
- Electrical Durability
- 200,000 cycles AC-23, AC-3; 600,000 cycles AC-15, AC-21
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Electrical Connection
- Captive screw clamp terminals flexible 2 x 1.5 mmB2, solid 1 x 2.5 mmB2
- Cam Switch Head Size
- 45 x 45 mm with front plate
- Net Weight
- 0.16 kg
- Legend Material
- Metallic
- Standards
- IEC 60947-3 power circuit, IEC 60947-5-1 control circuit, CENELEC EN 50013
- Ambient Operating Temperature
- -25 to 55 B0C
- Shock Resistance
- 30 gn IEC 68-2-27
Amperage20A
Short-Circuit Protection20 A cartridge fuse gG
Switching Angle30 B0
Mechanical Durability1,000,000 cycles
Impulse Withstand Voltage4 kV isolating, 6 kV IEC 947-1
IP Degree of ProtectionIP65 IEC 60529
Handle Size35 mm
Mounting Hole DiameterD8 22 mm hole
MaterialPlastic
Electrical Shock Protection ClassClass II IEC 536
CertificationsCSA, UL
Ambient Storage Temperature-40 to 70 B0C
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
