Square D

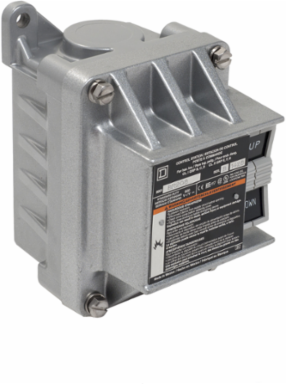

Square D 9001BR208 Push button, Type B, standard duty control station, 5A, 600 VAC, UP/DOWN, NEMA 7/9

Push button, Type B, standard duty control station, 5A, 600 VAC, UP/DOWN, NEMA 7/9
  • MPN: 9001BR208
  • UPC: 785901856542
  • PPN: SCH-9001BR208

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$436.22/ EA

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a UP push button with a normally open contact. It has a DOWN push button with a normally open contact. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Specifications

Complementary

Contacts Type And Composition
1 NO + 1 NO
[Ie] Rated Operational Current
5 A 600 V, AC
Type Of Operator
momentary
Material
cast zinc
Device Mounting
surface
Control Station Composition1 push-button, black, white FOR || 1 push-button, black, white REV
Mechanical Durability5000000 cycles
MarkingCE
Type Of Installationindoor

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1305038EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1305038EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Key Specifications

Control Station Application
two functions
Colour Of Base Of Enclosure
grey
Device Short Name
9001BR
Range Of ProductHarmony 9001B
Product Or Component Typecomplete control station

Environment

Product Certifications
CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 7/9
Ambient Air Temperature For Operation-25-70 °C
Environmental Characteristichazardous location
