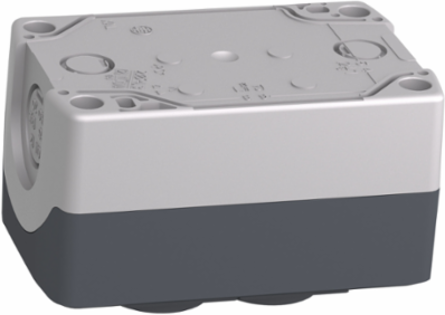

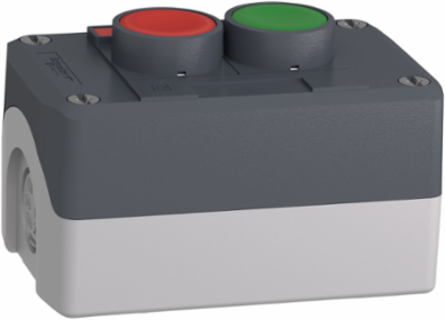

Schneider Electric XALD211H29 Harmony XALD Control Station, Dark Grey, 22mm Push Buttons, IP66/67/69K
- MPN: XALD211H29
- PPN: SCH-XALD211H29
CAD
$109.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XALD yellow control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads

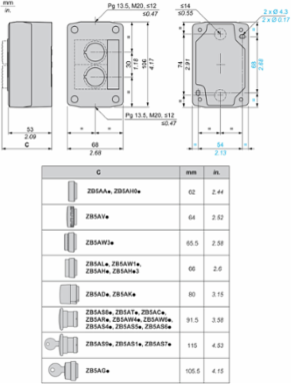

Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Housing Color
- grey
Color Of Coverdark greydark grey RAL 7016)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

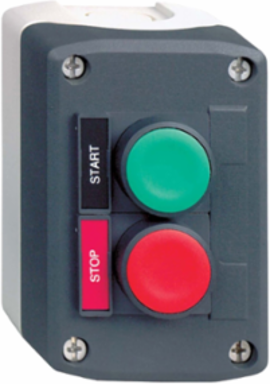

- Control Station Composition

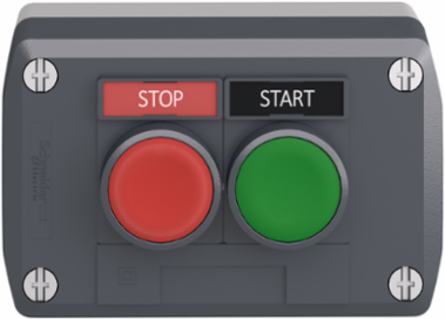

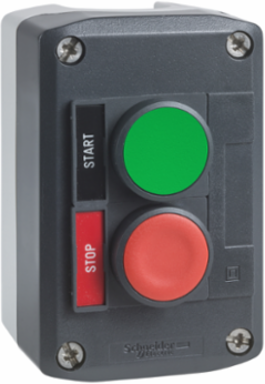

- 1 flush push-button, green 1 NO START, 1 flush push-button, red 1 NC STOP
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
- Certificate Agency
- CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, UL 508, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-5, JIS C8201-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.15889981345333648, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.000936570362829174, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00917078425119527
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506022EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard

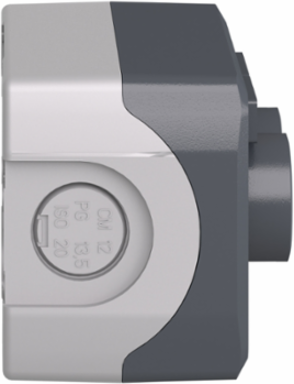

- Cable Entry

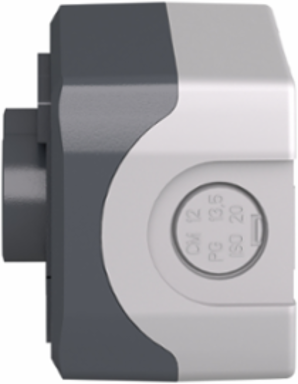

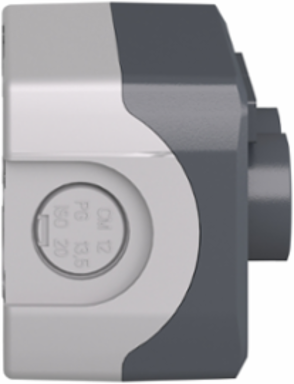

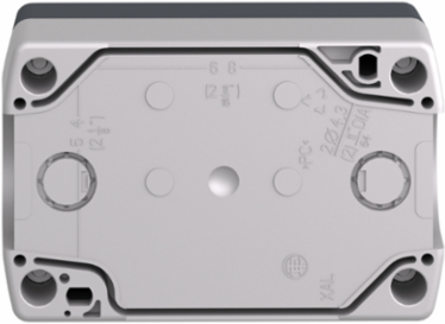

- 2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Contact Operation
- slow-break
- Control Station Application
- Start-Stop function
- Device Short Name
- XALD
- Marking Location
- marking on legend holder
- Mechanical Durability
- 10000000 cycles
- Operating Travel
- 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
- Operators Description
- green ''START'' 1 NO - red ''STOP'' 1 NC
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ac Control Voltage 60 Hz
- 120-600 V
- Number Of Contacts As Normally Closed Contact
- 1
- Number Of Push Buttons
- 2
- Color Of Cover
- dark greydark grey RAL 7016)
- Pep Code
- ENVPEP2506022EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Ie] Rated Operational Current6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.46544897743471386
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.1834476177106756
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXALD
Contacts Materialsilver alloy (Ag/Ni)
Dc Control Voltage125-600 V
Housing Materialplastic
Materialpolycarbonate
Operating Force3.5 N NC changing electrical state3.8 N NO changing electrical state
Operator Profile2 flush push-buttons
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecomplete control station
Range Of ProductHarmony XALD
ReturnabilityNo
Software Versionv6.3.0.1-4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Ac Control Voltage 50 Hz120-600 V
Number Of Command Positions2
Number Of Contacts As Normally Open Contact1
Color Of Base Of Enclosurelight grey RAL 7035)
Housing Colorgrey
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %18
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Emergency Power Off (Epo)no
Package Weight(Lbs)225.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.8179037632127506
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of Protection/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506022EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- complete control station
Range Of ProductHarmony XALD
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
