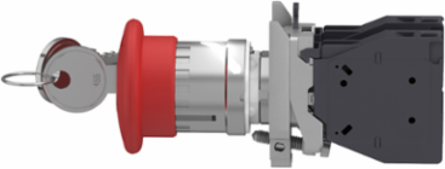

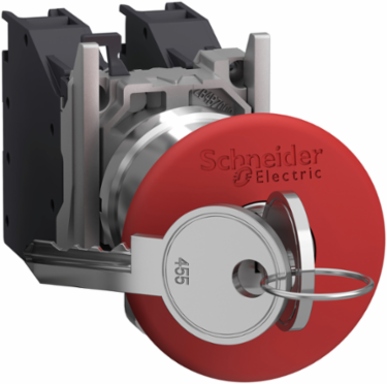

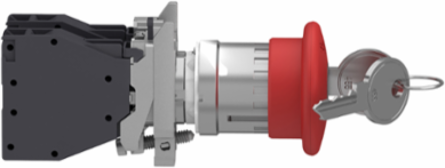

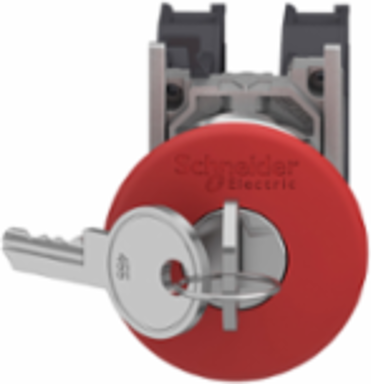

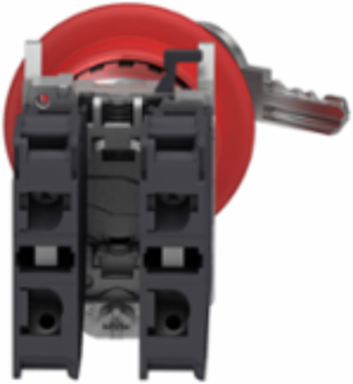

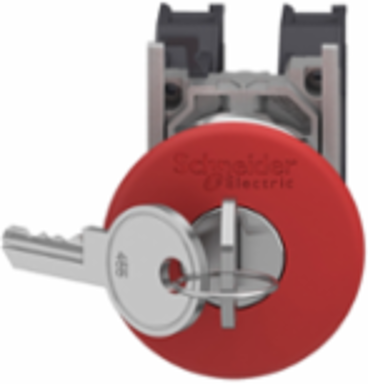

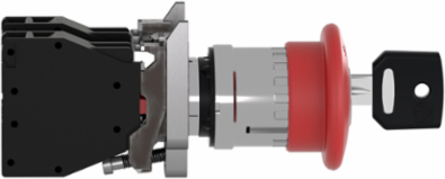

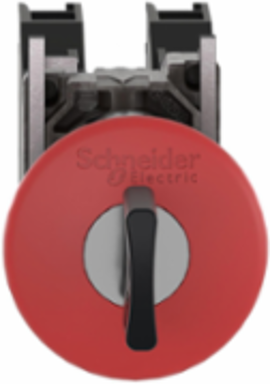

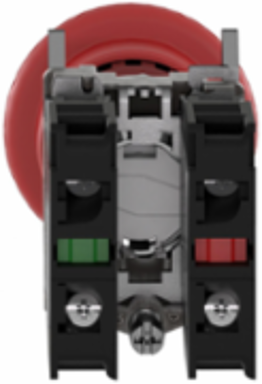

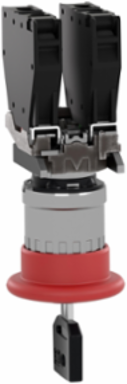

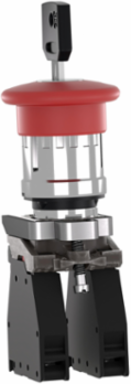

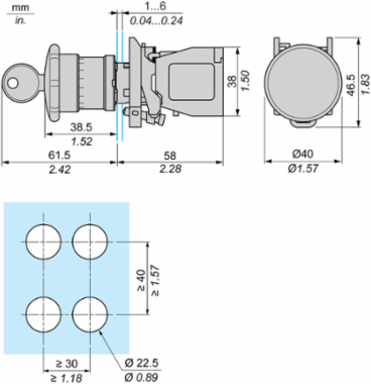

Schneider Electric XB4BS9445GEX Harmony XB4 Emergency Stop Push Button 22mm, IP65, 455 Key Release
- MPN: XB4BS9445GEX
- PPN: SCH-XB4BS9445GEX
CAD
$420.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This emergency switching off pusbutton comes with a mushroom head and key number 455. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It comes with trigger action and mechanical latching and key release operation. It has 1 NO and 1 NC contact with slow-break operation. This is a metal emergency stop pushbutton with a 40mm diameter mushroom head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth119.5 mm
Physical Attributes
- Embedding Depth
- 58 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.022191985, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0007443927, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 156.08
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2201004EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 16 %
- Compatibility Code
- XB4
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Short Name
- XB4
- Fixing Collar Material
- zamak
- Key Number
- 455
- Mechanical Durability
- 5000000 cycles
- Operator Profile
- red mushroom Ø 40 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Pisek, Czech Republic
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Height Nominal
- 30 mm
- Certificate Agency
- INERIS 04ATEX9004U
- [Ui] Rated Insulation Voltage
- 415 V
- Package Weight(Lbs)
- 192.000 g
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MarkingII 2 GD, Ex tb IIIC Db, Ex db eb IIC Gb
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0199819411
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.8163932373
Local Data StatusPublishable
Return IndicatorY
Future Msrp202.07
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content20 %
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Usagestandard
Dust Zonezone 21 - 22
Gas Zonezone 1 - 2
Key Withdrawal Positioncenter
Mounting Diameter22 mm
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typecomplete emergency stop push-button
Protective TreatmentTH
Resetkey release
Sale Per Indivisible Quantity1
Software VersionEIME v5.9.3
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatortrigger action and mechanical latching
Pep Code"ENVPEP2201004EN"
Pep Verification Date2022-01-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Width Nominal46.2 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C, -20-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.8593115562
- Environmental Disclosure
- "ENVPEP2201004EN"
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- "ENVPEP2201004EN"
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level20 %
Mercury FreeYes
Circularity ProfileENVEOLI2201004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2022-01-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- complete emergency stop push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
