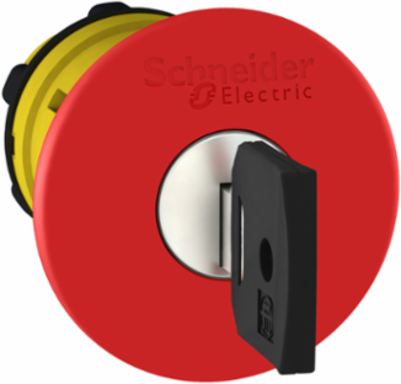

Schneider Electric ZB5AS944D Harmony XB5 Emergency Stop Button Head, 40mm Red Mushroom, IP66
- MPN: ZB5AS944D
- PPN: SCH-ZB5AS944D
CAD
$144.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched key release (key no.4A185) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Cad Overall Depth
- 79 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Profile
- red mushroom Ø 40 mm, unmarked, mushroom Ø 40 mm
- Station Name
- XALD 1 cut-out, XALK 1 cut-out
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1182438563
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.5421595686
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 149.15
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308013EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 60 %
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Main Group
- E-stop
- Mechanical Durability
- 300000 cycles
- Overvoltage Category
- class II conforming to IEC 60536
- Product Destination
- emergency stop push-button
- Protective Treatment
- TH
- Reset
- key release
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Keylock
- Dom 4A185
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Operator Profile 1 Operator Profile
- mushroom Ø 40 mm
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C10 4 single and double front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile 1 Cap Operator Or Lens Colorred
Carbon Footprint Of The Distribution Phase [A4]0.0092845547, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0173880129, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap115.21
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content7 %
Compatibility CodeZB5
Group Of Productemergency stop key release
Key Withdrawal Positioncenter
Markingunmarked
Mounting Diameter22 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typehead for emergency stop push-button
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.7 kg CO2 eq.
Type Of Operatortrigger action and mechanical latching
Keylock TypeDom 4A185
Pep CodeENVPEP2308013_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y10
Cap/Operator Or Lens Colourred
Package Weight(Lbs)68.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.6870759924
- Environmental Disclosure
- ENVPEP2308013_V1-EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level60 %
Mercury FreeYes
Circularity ProfileENVEOLI2308013EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308013_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for emergency stop push-button
Range Of ProductHarmony XB5
