Harmony XB6 Emergency Stop Push Button Head, 30mm Red Mushroom, Trigger Action
Schneider Electric

Schneider Electric ZB6AS934 Harmony XB6 Emergency Stop Push Button Head, 30mm Red Mushroom, Trigger Action

  • MPN: ZB6AS934
  • PPN: SCH-ZB6AS934

CAD

$56.03

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

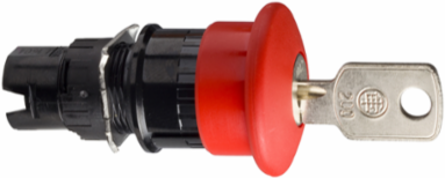

This Harmony ZB6AS934 is a red diameter 30mm Emergency stop push button head, trigger and latching key release. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France, Mexico, United States

Physical Attributes

Cad Overall Depth
70 mm
Cad Overall Width
30 mm
Cad Overall Height30 mm

Important Information Attributes

Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate Agency
UL, CSA, GOST, CCC
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.0780502786
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.4 kg CO2 eq., 0.357993808
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2312039EN
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
Yes
Product Kit Identifier
N
Compatibility Code
ZB6
Electrical Shock Protection Class
class II conforming to IEC 61140
Mounting Diameter
16 mm
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TC
Reset
key release
Sale Per Indivisible Quantity
1
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
0.5 kg CO2 eq.
Type Of Operator
trigger action and mechanical latching
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Nbr. Of Units In Pkg.
1
Take-back
No
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase [A4]0.0057537833, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0154217957, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialplastic
Device Short NameZB6
Mechanical Durability100000 cycles
Operator Profilered mushroom Ø 30 mm, unmarked
Product Or Component Typehead for emergency stop push-button
Range Of ProductHarmony XB6
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Type Of Keylockkey 200
Pep CodeENVPEP2312039EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Package Weight(Lbs)44.0 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Nema Degree Of Protection
NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Circularity Profile
ENVEOLI2312039EN
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Pep Verification Date
2023-12-07
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.4572196656
Environmental DisclosureENVPEP2312039EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2312039EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
head for emergency stop push-button
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC001038
ETIM 9EC001038

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
