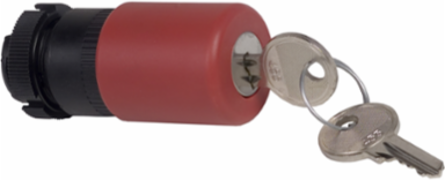

Schneider Electric ZA2BS934 Harmony XAC Emergency Stop Head 30mm Red Latching Key Release
- MPN: ZA2BS934
- PPN: SCH-ZA2BS934
CAD
$97.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony ZA2BS934 is a red diameter 30mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Important Information Attributes
- Certificate Agency
- UL 508, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-1, IEC 60204-32, IEC 62262
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0350449635
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.8277883212
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308018EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Marking
- unmarked
- Operator Profile
- red mushroom Ø 30 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XAC
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- No
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential, In %
- 80
- Package Weight(Lbs)
- 71.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.0091536496, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0002161314, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Mounting Locationfront of enclosure
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typehead for emergency switching off push-button
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Pep CodeENVPEP2308018EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.8722030657
- Environmental Disclosure
- ENVPEP2308018EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- XACA..
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308018EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP2308018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for emergency switching off push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
