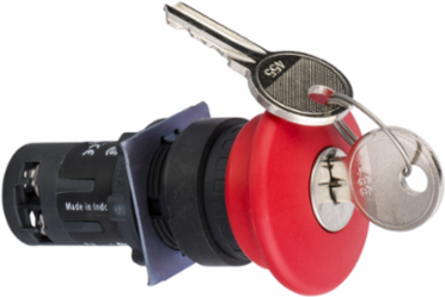

Schneider Electric XB7ES145P Emergency Push Button, 22mm Red with 40mm Mushroom, 1NO + 1NC, Key 455
- MPN: XB7ES145P
- PPN: SCH-XB7ES145P
CAD
$92.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This emergency push button from Schneider Electric is designed to provide a quick and effective means of controlling machinery in urgent situations. Featuring a striking 22mm red design with a prominent 40mm mushroom head, it ensures visibility and ease of access during emergencies. The configuration includes one normally open (1NO) and one normally closed (1NC) contact, allowing for versatile applications in various industrial environments. A key slot adds an extra layer of security, making it an essential component for safety in workplaces.
Documentation & Downloads
Specifications
Key Specifications
| Reset | key release |
|---|---|
| Mounting Diameter | 22 mm |
| Product Or Component Type | emergency switching off monolithic push-button |
| Device Presentation | monolithic product |
| Contacts Type And Composition | 1 NO + 1 NC |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Type Of Keylock | key 455 |
| Range Of Product | Harmony XB7 |
|---|---|
| Type Of Operator | mechanical latching |
| Shape Of Signaling Unit Head | round |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1 |
| Sale Per Indivisible Quantity | 10 |
| Device Short Name | XB7 |
Complementary
| Contacts Usage | standard |
|---|---|
| Short-Circuit Protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Net Weight | 0.058 kg |
| Cad Overall Height | 40 mm |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Contact Operation | slow-break |
| Electrical Reliability | λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4 |
| Cad Overall Width | 40 mm |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Terminals Description Iso N°1 | (21-22)NC || (13-14)NO |
|---|---|
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1 |
| Mechanical Durability | 10000 cycles |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Cad Overall Depth | 95 mm |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1 |
Environment
| Product Certifications | CCC |
|---|---|
| Standards | CSA C22.2 No 14 || IEC 60364-5-53 || UL 508 || IEC 60947-1 || IEC 60947-5-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 60536 |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP54 IEC 60529 front face) |
| Nema Degree Of Protection | NEMA 12 UL 50 |
| Protective Treatment | TH |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1805012EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI1805012EN |
