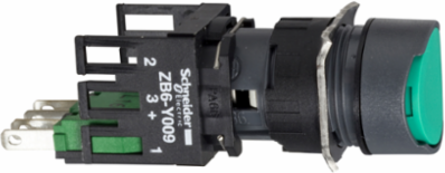

Schneider Electric XB6AA35B Harmony XB6 Green Flush Pushbutton, 16mm, 1NO + 1NC, IP65
- MPN: XB6AA35B
- PPN: SCH-XB6AA35B
CAD
$40.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB6 green flush pushbutton from Schneider Electric is designed for reliable performance within automation and control systems. Featuring a 16mm form factor, it includes both a normally open (1NO) and a normally closed (1NC) contact, making it versatile for various applications. With an IP65 rating, it offers effective protection against dust and water, ensuring durability even in challenging environments. Its compact design and robust functionality make it an excellent choice for enhancing control capabilities in industrial settings.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, 1.5 A 240 V AC-15, 0.1 A 250 V DC-13, 0.22 A 125 V DC-13
- Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Operating Travel
- 1 mm NO changing electrical state, 2 mm NC changing electrical state, 3.5 mm total travel
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V
- Vibration Resistance
- +/- 3 mm 2-500 Hz IEC 60068-2-6, 5 gn 2-500 Hz IEC 60068-2-6
- Dimensions (W x H x D)
- 18 mm x 18 mm x 57 mm (0.71 in x 0.71 in x 2.24 in)
- Panel Thickness
- 1 to 6 mm (0.03 to 0.23 in)
- Operator Profile
- green flush, unmarked
- Contacts
- 1 NO + 1 NC
- Contact Operation
- slow-break
- IP Degree of Protection
- IP65 IEC 60529
- Electrical Shock Protection Class
- Class II IEC 61140
- Product Certifications
- GOST, CSA, CCC, UL
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Operating Position
- any position
- Shape Of Signaling Unit Head
- round
- Circularity Profile
- ENVEOLI1710010EN
- Warranty
- 18 months
- EU RoHS Directive
- Pro-active compliance (out of EU RoHS scope)
- Reach Free of SVHC
- Yes
- Electrical Reliability
- λ = 10⁻⁸ at 5 V 1 mA, 90% confidence IEC 60947-5-4
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1710010EN
- Type Of Operator
- spring return
Rated Insulation Voltage250 V EN/IEC 60947-1
Operating Force3.5 N NO changing electrical state, 4.5 N NC changing electrical state
Mechanical Durability2,000,000 cycles
Shock Resistance30 gn 18 ms half sine wave IEC 60068-2-27, 50 gn 11 ms half sine wave IEC 60068-2-27
Mounting Diameter16 mm (0.63 in)
Net Weight0.022 kg
Operator Typespring return
Bezel Materialplastic
Contact Materialsilver alloy (Ag/Ni)
Connections - TerminalsFaston connectors 2.8 x 0.5 mm
NEMA Degree of ProtectionNEMA 13, 4, 4X UL 50, CSA C22.2 No 94
StandardsUL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C 852, JIS C 4520
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Protective TreatmentTC
Positive Openingwith EN/IEC 60947-5-1 appendix K
Reach RegulationFree of Substances of Very High Concern above threshold
WeeeEU waste compliant
China RoHS RegulationX
Mercury FreeYes
RoHS Exemption InformationYes
Terminals Description ISO No1(13-14) NO, (21-22) NC
Toxic Heavy Metal FreeYes
Device Short NameXB6
