Schneider Electric XB6AA15B Complete push button, Harmony XB6, white flush pushbutton Ø 16 spring return 1NO+1NC unmarked
Schneider Electric XB6AA15B Complete push button, Harmony XB6, white flush pushbutton Ø 16 spring return 1NO+1NC unmarked
- MPN: XB6AA15B
- PPN: SCH-XB6AA15B
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.32/ EA
Description

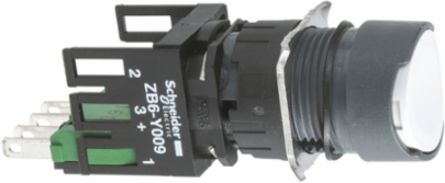

Complete push button, Harmony XB6, white flush pushbutton Ø 16 spring return 1NO+1NC unmarked
Specifications
Environment
- Product Certifications
- CSA || CCC || UL || GOST
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Electrical Durability
- 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Operating Force
- 3.5 N NO changing electrical state || 4.5 N NC changing electrical state
- Operating Travel
- 1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
- Mechanical Durability
- 2000000 cycles
- Operating Position
- any position
- Cad Overall Width
- 18 mm
- Net Weight
- 0.022 kg
- Cad Overall Height
- 18 mm
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Short-Circuit Protection6 A cartridge fuse gG
[Ie] Rated Operational Current3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Depth57 mm
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1
Specifications
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- plastic
- Operator Profile
- white flush, unmarked
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
Contacts Type And Composition1 NO + 1 NC
Range Of ProductHarmony XB6
Contact Operationslow-break
Mounting Diameter16 mm
Product Or Component Typecomplete push-button
Device Short NameXB6
