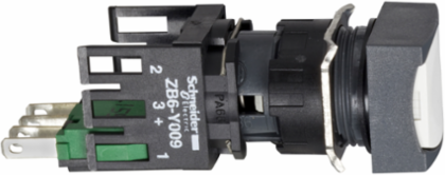

Schneider Electric XB6CA11B Harmony XB6 16mm White Square Flush Pushbutton, Spring Return, 1NO
- MPN: XB6CA11B
- PPN: SCH-XB6CA11B
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Harmony XB6 series boasts a sophisticated yet practical design, exemplified by its 16mm white square flush pushbutton with a spring return mechanism. This pushbutton, featuring one normally open (1NO) contact, is expertly engineered for reliability and user-friendly operation within automation and control systems. Its compact size and sleek appearance make it an ideal choice for a variety of applications where both functionality and aesthetics are essential. Perfect for panel builders and system integrators, this pushbutton enhances operational efficiency while seamlessly fitting into modern control panels.
Documentation & Downloads
Specifications
Additional
- Rated Insulation Voltage
- 250 V EN/IEC 60947-1
- Operating Force
- 3.5 N (NO electrical state change)
- Mechanical Durability
- 2,000,000 cycles
- Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Contact Operation
- Slow-break
- Voltage
- 250 V
- Vibration Resistance
- +/- 3 mm 2-500 Hz, 5 gn IEC 60068-2-6
- NEMA Degree of Protection
- NEMA 13, 4, 4X UL 50, CSA C22.2 No 94
- Mounting Diameter
- 16 mm (0.63 in)
- Panel Thickness for Mounting
- 1 to 6 mm (0.03 to 0.23 in)
- Operator Type
- Spring return
- Connections Terminals
- Faston connectors 2.8 x 0.5 mm
- Protective Treatment
- TC
- Ambient Operating Temperature
- -25 to 70 °C (-13 to 158 °F)
- Environmental Compliance
- RoHS Compliant, REACh SVHC Free
- Product Certifications
- CCC, UL, GOST, CSA
Rated Operational Current3 A at 120 V AC-15, 1.5 A at 240 V AC-15, 0.1 A at 250 V DC-13, 0.22 A at 125 V DC-13 EN/IEC 60947-5-1
Operating Travel1 mm (NO electrical change), 3.5 mm total
Electrical Durability1,000,000 cycles AC-15 at 230 V, 1,000,000 cycles DC-13 at 230 V EN/IEC 60947-5-1 appendix C
Contact Type1 NO (Normally Open)
Short-Circuit Protection6 A cartridge fuse gG
Shock Resistance30 gn (18 ms), 50 gn (11 ms) half sine wave acceleration IEC 60068-2-27
IP Degree of ProtectionIP65 IEC 60529
Electrical Shock Protection ClassClass II IEC 61140
Dimensions (W x H x D)18 mm x 18 mm x 57 mm (0.71 in x 0.71 in x 2.24 in)
ShapeSquare
Operator ProfileWhite flush, unmarked
Contact MaterialSilver alloy (Ag/Ni)
Material BezelPlastic
Ambient Storage Temperature-40 to 70 °C (-40 to 158 °F)
Country of OriginMexico
Standards ComplianceUL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C 4520, JIS C 852
