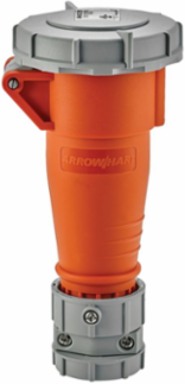

Eaton AH420C12W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 125/250 V, Amperage Rating: 20A, Allowable Wire Size: #12-10 AWG, Number Of Wires: Grounding 4
- MPN: AH420C12W
- UPC: 032664732638
- PPN: COW-AH420C12W
CAD
$158.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, Extra Heavy-Duty, 125/250V, Back wire, Orange, Nickel plated brass, IP67, IP69K, Nylon, Three-pole, Four-wire, grounding, 0.333-0.775in (0.85-1.97cm), Female, Nylon
Specifications
Key Specifications
| Length | 8.5 in |
|---|---|
| Width | 4.375 in |
| Product Type | Pin and Sleeve connector |
| Amperage Rating | 20A |
| Contact Material | Nickel plated brass |
| Number Of Wires | Grounding 4 |
| Cord Diameter | 0.333-0.775in (0.85-1.97cm) |
| Allowable Wire Size | #12-10 AWG |
| Design Type | Pin and sleeve connector |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
| Height | 4.375 in |
|---|---|
| Weight | 0.749 lbs |
| Type | Connector |
| Voltage Rating | 125/250 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Three-pole |
| Gender | Female |
| Torque Rating | 10 lbf-inch |
| Face/Body Material | Nylon |
