Hubbell Wiring Device-Kellems HBL29W77 Watertight Twist-Lock Connector, 30A, 600V, 3-Pole, Yellow
- MPN: HBL29W77
- UPC: 783585131917
- PPN: HBL-HBL29W77
- UNSPSC: 39121421
CAD
$168.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

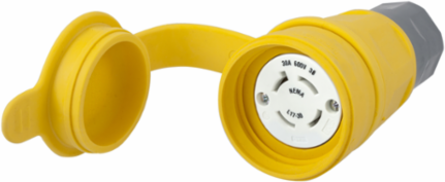

Watertight Devices, Twist-Lock® Connector, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30R, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.77 in x 2.77 in x 5.67 in
- Industry Standard(s)
- Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
- Amperage Rating
- 30 A
- NEMA Rating
- L17-30R
- Size
- 2.77 in x 2.77 in x 5.67 in
- Type
- Connector Body
- Voltage Rating Description
- 3 Phase 600 VAC
- Engineering Drawing 1 Display Text
- HBL29W77 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Nema Rating
- L17-30R
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 29W77H
- Cord Diameter
- 0.385-0.930 in
- BOX SIZE
- 9.400x16.900x9.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585131917
- Case Weight
- 11.200 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Height5.67 in
Length2.77 in
Standards - RoHS Compliance StatusCM
ColorYellow
Number of Poles3-Pole
StandardMeets NEMA WD-1, WD-6 And ANSI Standards
Voltage Rating3 Phase 600 VAC
Width2.77 in
General Literature Asset 1 Display TextWatertight Wiring Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Number Of Poles3-Pole
Wire SizeMin Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Description - InvoiceCONN, W/TIGHT, 3P 30A 600V, L17-30R, YL
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A116
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet Height42.600 in
Pallet Weight488.000 lb.
NAICS Code335931A102
