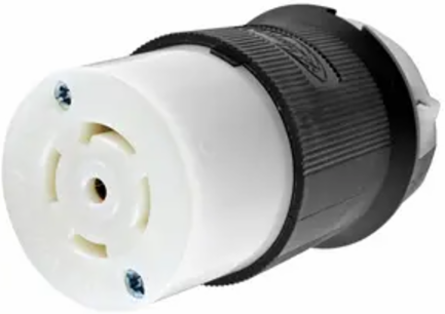

Hubbell Wiring Device-Kellems HBL2813 Twist-Lock Female Connector, 30A 3-Phase Wye 120/208V AC, NEMA L21-30R
- MPN: HBL2813
- UPC: 783585039657
- PPN: HBL-HBL2813
- UNSPSC: 39121421
CAD
$143.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, Twist-Lock®, Insulgrip® Connector, 30A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-30R, Black and white nylon
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL2813 AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Entertainment Product Solution Guide |
| Country of Origin | United States |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Industry Standard(s) | Fed.Spec. W-C-596;Listed to UL 498;Certified to CSA, C22.2, No. 42 |
| Performance | Electrical-Current Interrupting - Certified at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact) |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| NEMA Rating | L21-30R |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Standard | Fed.Spec. W-C-596;Listed to UL 498;Certified to CSA, C22.2, No. 42 |
| Voltage Rating Description | 120/208 VAC |
| Width | 2.33 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | L21-30R |
| Number Of Wires | 5-Wire Grounding |
| Phase | 3 Phase WYE |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 2813 |
| Cord Range | 0.350"-1.150" (9-29) |
| Current Rating | 30 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 13.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 30 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585039656 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Insulgrip® Straight Blade and Twist-Lock® Devices |
|---|---|
| General Literature Asset 3 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
| Current / Amperage Rating | 30 A |
| Height | 3.86 in |
| Length | 2.33 in |
| Amperage Rating | 30 A |
| Color | Black, White |
| Insulation | Insulated Body |
| Number of Poles | 4-Pole |
| Special Features | Standard Product |
| Voltage Rating | 120/208 VAC |
| Weight | 0.40 lb. |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Number Of Poles | 4-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #16 AWG to #8 AWG |
| Description - Invoice | LKG CONN, 30A 3P 120/208V, L21-30R, B/W |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Sub Class Code | A08A110 |
| Material - Mounting Hardware | Cord Mounted |
| Material | Nylon |
| BOX SIZE | 7.900x12.700x8.900 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585039657 |
| Case Weight | 5.379 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 47.400 in |
| Pallet Weight | 1305.600 lb. |
| NAICS Code | 335931A102 |
Certifications
| Listings | UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42 |
|---|
