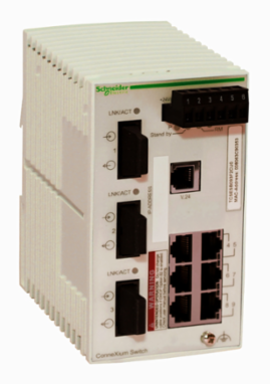

Schneider Electric TCSESB093F2CU0 switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
Schneider Electric TCSESB093F2CU0 switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
- MPN: TCSESB093F2CU0
- PPN: SCH-TCSESB093F2CU0
- UNSPSC: 32151701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1493.88/ EA
Description
This product is part of the Modicon Networking range, an offer of Modicon Basic Managed Switch. This device comes with Ethernet TCP/IP protocol. It comes with 6 copper cable transmission ports and 3 ports for multi-mode fiber optic. It provides simple and complex connectivity for multiple Ethernet device. This product works at a power consumption of 9W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 74mm (width) x 131mm (height) x 111mm (depth) and weighs 0.41 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Features
- Entry-level managed switch provide high cost performance with flexibility and features give customers more options
- Provides simple connectivity for multiple Ethernet devices
- High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
- Easy configuration and administration process via based web pages
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, temperature threshold
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring
Communication Port ProtocolEthernet TCP/IP, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP (Media Redundancy Protocol)
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 4 km 62.5/125 µm, 5 km 50/125 µm
Conformance Attributes
- Product Certifications
- CE, UL, RCM, EAC, CE, UL, RCM, EAC, UKCA
- Certifications
- CE/cULus/RCM/UKCA, EAC
StandardsUL 508, EN/IEC 61131
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable, duplex SC fiber optic
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
- Ethernet Service
- configuration via web server, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Marking
- CE, UL, RCM
- Redundancy
- HiPER ring, RSTP
- Local Data Status
- Publishable
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1003004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Cybersecurity
- role-based access control
- Ethernet Cabling System
- TF switches
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 9 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- No
- Sustainable Packaging
- No
- Medium Desc
- switch, Modicon Networking, basic managed switch, 6 ports for copper, 3 ports for fiber optic multimode
- Product Kit Identifier
- N
- Number Of Rj45 Port
- 6 10/100 Mbps
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test
Local Signalling1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status
Port Ethernet10/100BASE-TX - 6 copper cable, 100BASE-FX - 3 fiber optic
Transmission Support Mediumtwisted shielded pairs cable CAT 5E fiber optic, multimode optical fiber copper cable
Local Publishable Date2026-01-12
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 6 ways power supply
Function Availablesystem information
Package Weight Lbs617.000 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon Networking
Supply Voltage Limits9.6-32 V DC SELV
Us Rated Supply Voltage212...24 V
Stocking FlagY
Pep CodeENVPEP1003004EN
Number Of Uplink Port3 F/O multi mode 100 Mbps
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1003004EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-95 % non-condensing
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP1003004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1003004EN
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 111 mm
