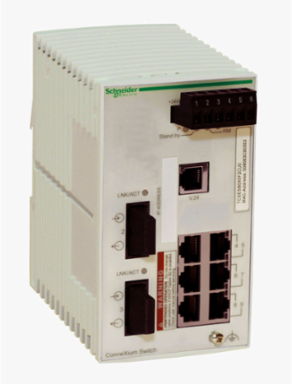

Schneider Electric TCSESB083F2CU0 Modicon Managed Network Switch 6 Ports Copper 2 Ports Fiber Optic

MPN: TCSESB083F2CU0
PPN: SCH-TCSESB083F2CU0

$1241.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for robust performance in industrial applications, the Modicon Managed Network Switch from Schneider Electric features six copper ports and two fiber optic ports, enhancing connectivity in complex automation networks. This switch is meticulously designed to facilitate seamless communication between various devices in your control network, ensuring optimal data transmission and reliability. Its advanced management capabilities enable efficient network monitoring and configuration, making it an essential component for PLC and HMI systems where data acquisition and control are critical. With its combination of flexibility and durability, this managed switch represents a vital solution for automating your operations and improving overall network efficiency.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, United States

Depth	111 mm

Communications & Management Attributes

Alarm Function	power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, temperature threshold
Communication Service	TFTP, Quality of Service (QoS), port monitoring, port mirroring

Communication Port Protocol	Ethernet TCP/IP, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP (Media Redundancy Protocol)
Alarm Output	1 voltfree contact 1 A

Physical Attributes

Optic Fiber Length	4 km 62.5/125 µm5 km 50/125 µm

Complementary Attributes

Integrated Connection Type	shielded RJ45 copper cableduplex SC fiber optic
Maximum Number Of Switches In A Ring	50

Maximum Cable Distance Between Devices	100 m copper cable
Maximum Number Of Switches In Cascade	unlimited

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Attenuation	0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
Ethernet Service	configuration via web server, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Marking	CE, UL, RCM
Redundancy	HiPER ring, RSTP
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	removable connector 6 ways power supply
Function Available	system information
Number Of Port	8
Number Of Uplink Port	2 F/O multi mode 100 Mbps
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Networking
Supply Voltage Limits	9.6-32 V DC SELV
Transmission Support Medium	twisted shielded pairs cable CAT 5E fiber opticmultimode optical fiber copper cable
Height Nominal	131 mm
[Us] Rated Supply Voltage	12...24 V
Package Weight(Lbs)	596.000 g
Warranty (In Months)	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Time	signal contact, self test
Local Signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status
Port Ethernet	10/100BASE-TX - 6 copper cable, 100BASE-FX - 2 fiber optic
Certificate Agency	CE, UL, RCM, EAC, UKCA
Local Publishable Date	2026-07-16
Stocking Flag	Y
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1003004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2024
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Cybersecurity	role-based access control
Ethernet Cabling System	TF switches
Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	6 10/100 Mbps
Power Consumption In W	8 W
Product Or Component Type	Ethernet TCP/IP managed switch
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP1003004EN
Width Nominal	74 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1003004EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1003004EN

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP1003004EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	10-95 % non-condensing
