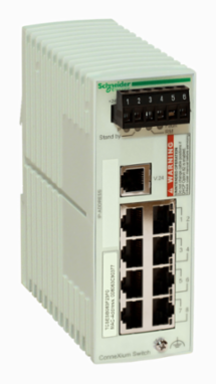

Schneider Electric TCSESB083F23F0 ConneXium Managed Network Switch, 8 Ports, IP20, 6W Power Consumption
- MPN: TCSESB083F23F0
- PPN: SCH-TCSESB083F23F0
CAD
$818.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP basic managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 214, CSA C22.2 No 213 Class I Division 2, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, United States
Depth111 mm
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, redundancy ring fault, incorrect configuration, temperature threshold
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring
Communication Port ProtocolEthernet TCP/IP, HTTP, HTTPS, SNMP, LLDP, SNTP, MRP (Media Redundancy Protocol)
Alarm Output1 voltfree contact 1 A
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Diagnostics Run Time
- signal contact, self test
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for ring manager, 1 LED (green) for stand-by, 1 dual colour LED (green/yellow) for channel diagnostic, Device status
- Redundancy
- HiPER ring, RSTP
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 863.20
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1003004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2024
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Cybersecurity
- role-based access control
- Ethernet Cabling System
- TF switches
- Mounting Support
- 35 mm symmetrical DIN rail
- Number Of Rj45 Port
- 8 10/100 Mbps
- Power Consumption In W
- 6 W
- Product Or Component Type
- Ethernet TCP/IP managed switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1003004EN
- Width Nominal
- 47 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Ethernet Serviceconfiguration via web server, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
MarkingCE, UL, RCM
Certificate AgencyCE, UL, RCM, EAC, CE, UL, RCM, EAC, UKCA
Local Publishable Date2026-01-12
Future Imap626.29
Stocking FlagY
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionremovable connector 6 ways power supply
Function Availablesystem information
Number Of Port8
Port Ethernet10/100BASE-TX - 8 copper cable
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Networking
Supply Voltage Limits9.6-32 V DC SELV
Transmission Support Mediumtwisted shielded pairs cable CAT 5E copper cable
Height Nominal131 mm
[Us] Rated Supply Voltage12...24 V
Package Weight(Lbs)412.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1003004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1003004EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP1003004EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % non-condensing
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
