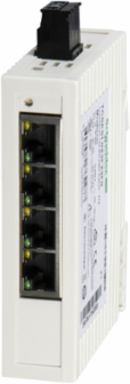

Schneider Electric TCSESL043F23F0 Modicon Lite Managed Network Switch, 4 Copper Ports, IP30
- MPN: TCSESL043F23F0
- PPN: SCH-TCSESL043F23F0
CAD
$410.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon Lite Managed Network Switch from Schneider Electric is engineered for effective network management and efficiency in industrial settings. Featuring four copper ports, this switch allows robust connectivity while maintaining an IP30 rating that ensures protection against dust and solid objects. Ideal for modern industrial applications, it supports seamless communication and data transfer, making it an essential component for those looking to enhance network performance and reliability within their operations.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Brazil, Germany, France, United States |
|---|
| Depth | 79 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Ethernet TCP/IP, HTTP, HTTPS, SNMP, LLDP |
|---|
| Communication Service | TFTP, port monitoring |
|---|
Complementary Attributes
| Integrated Connection Type | shielded RJ45 copper cable |
|---|---|
| Maximum Number Of Switches In A Ring | 50 |
| Maximum Cable Distance Between Devices | 100 m copper cable |
|---|---|
| Maximum Number Of Switches In Cascade | unlimited |
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Ethernet Service | configuration via web server, multicast filtering, syslog, SNMP-Traps |
| Marking | CE, cULus, RCM |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Diagnostics Run Time | log file |
| Ethernet Cabling System | TF switches |
| Number Of Port | 4 |
| Port Ethernet | 10/100BASE-TX - 4 copper cable |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon Networking |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1003004EN |
| Width Nominal | 25 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Signalling | 1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 LED per channel (green) for link status |
| Certificate Agency | CE, UL, RCM, EAC, UKCA |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Networking and Cable Solutions - Networking Devices |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1003004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2024 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Cybersecurity | enable/disable communication ports |
| Electrical Connection | removable connector 3 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Number Of Rj45 Port | 4 10/100 Mbps |
| Power Consumption In W | 2.35 W |
| Product Or Component Type | Ethernet TCP/IP managed switch |
| Redundancy | RSTP |
| Supply Voltage Limits | 9.6-32 V DC SELV |
| Transmission Support Medium | twisted shielded pairs cable CAT 5E copper cable |
| Height Nominal | 114 mm |
| [Us] Rated Supply Voltage | 12...24 V |
| Package Weight(Lbs) | 153.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1003004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1003004EN |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP1003004EN |
| Ip Degree Of Protection | IP30 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % non-condensing |
General Attributes
| Product Or Component Type | Ethernet TCP/IP managed switch |
|---|
| Range Of Product | Modicon Networking |
|---|
ETIM
| ETIM 8 | EC000734 |
|---|
| ETIM 9 | EC000734 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
