Square D 8502SGO2V05 NEMA Size 5 Contactor, 270A, 200 HP, 3 Pole, 380 VAC Coil, Open
- MPN: 8502SGO2V05
- PPN: SCH-8502SGO2V05
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

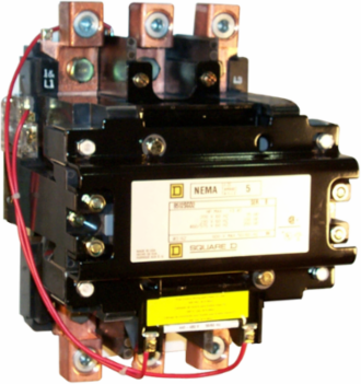

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing contactor has a 270 ampere rating. Three phase NEMA Size 5 contactors have 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 380 VAC 50 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 12.31 inches tall, 8.67 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 222.25 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 75 HP 200 V AC100 HP 230 V AC200 HP 460 V AC, 200 HP 575 V AC
- Line Rated Current
- 270 A
Control Circuitcommon control circuit
Important Information Attributes
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 24 kg CO2 eq., 23.847249181612117
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 81 kg CO2 eq., 80.59138282290486
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Control Circuit
- common control circuit
- Electrical Connection
- screw clamp terminals
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- fuse not supplied
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2506044EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 312.67 mm
- [Uc] Control Circuit Voltage
- 380 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]3.9325431611337964, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.720777733354162, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 797 kg CO2 eq., 17796.997647865446
Local Publishable Date2026-01-16
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Contactor Applicationnon-reversing
Control Typeno control units
Local Signallingno indicator
Phase3 phase
Product Or Component Typecontactor
Range Of Product8502S
Software Versionv6.2.4
Total Lifecycle Carbon Footprint17 908 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %54
Width Nominal220.22 mm
[Ue] Rated Operational Voltage600 V AC
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Carbon Footprint
- 17908.08960076445
- Eu Rohs Directive
- Not compliant
- Nema Size
- 5
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2506044EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilitycircuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC, fuse J 400 A maximum, SCCR: 100 kA at 600 V AC, fuse T 400 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP2506044EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Phase
- 3 phase
- Provided Equipment
- fuse not supplied
Product Or Component Typecontactor
Range Of Product8502S
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
