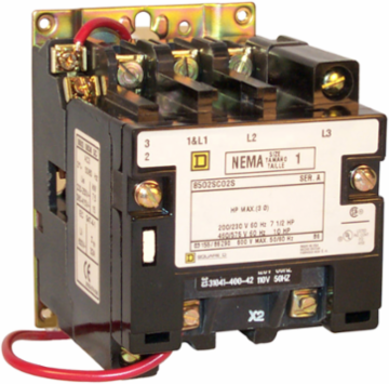

Square D 8502SCO2V06 NEMA Size 1 Non-Reversing Contactor, 27A, 10HP at 575VAC
- MPN: 8502SCO2V06
- UPC: 785901869030
- PPN: SCH-8502SCO2V06
CAD
$914.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

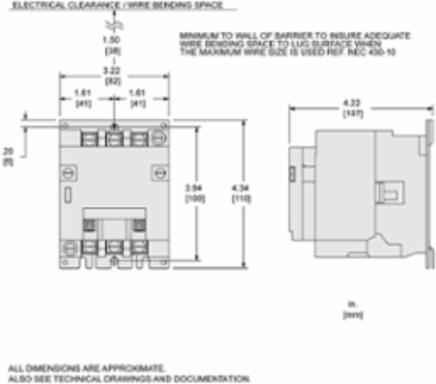

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 107.19 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 7.5 HP 200 V AC, 7.5 HP 230 V AC, 10 HP 460 V AC, 10 HP 575 V AC
- Line Rated Current
- 27 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.41411922030458037, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.28651341063319474, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 422 kg CO2 eq., 421.5869519305879
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Circuit
- common control circuit
- Electrical Connection
- screw clamp terminals
- Local Signalling
- no indicator
- Phase
- 3 phase
- Product Or Component Type
- contactor
- Range Of Product
- 8502S
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 433 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 54
- Width Nominal
- 81.79 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
[Uc] Control Circuit Voltage480 V AC 60 Hz, 440 V AC 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.511251328428142
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 8.486732185862923
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Contactor Applicationnon-reversing
Control Typeno control units
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentfuse not supplied
ReturnabilityNo
Sustainable PackagingYes
Pep CodeENVPEP2506044EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal110.24 mm
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)1.433 kg
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC, fuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 433.28556807581674
- Eu Rohs Directive
- Not compliant
- Nema Size
- 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2506044EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP2506044EN
Nema Degree Of Protectionnot rated (open device)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Phase
- 3 phase
- Provided Equipment
- fuse not supplied
Product Or Component Typecontactor
Range Of Product8502S
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
