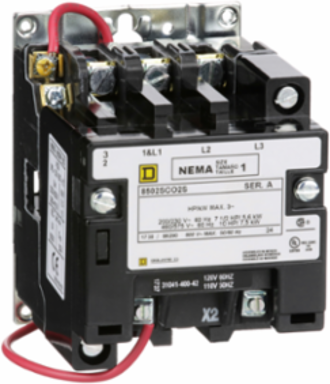

Square D 8502SCO2V02S NEMA Size 1 Non-reversing Contactor, 27A, 10HP, 3 Pole, 120VAC
- MPN: 8502SCO2V02S
- UPC: 785901862901
- PPN: SCH-8502SCO2V02S
CAD
$914.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

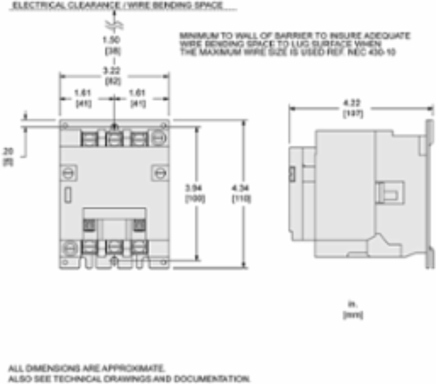

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Three phase NEMA Size 1 contactors have 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Features
- Designed strictly to the rugged NEMA construction standard, this Size 1 magnetic contactor ensures exact dimensional and performance compatibility when swapping out older or failing units in standard panels. It eliminates the physical alignment headaches common with compact IEC alternatives, allowing commercial electricians and industrial maintenance teams to complete drop-in retrofits without costly layout modifications.
- Engineered for demanding industrial automation, this 3-pole, non-reversing contactor manages full-voltage starting for inductive motor loads up to 10 HP at 460/575V AC or 7.5 HP at 200/230V AC. The robust 27-Amp continuous current rating and an impressive short-circuit current rating (SCCR) up to 100 kA provide an ultra-reliable switching solution for heavy machinery, large heating loads, and high-capacity transformers.
- Featuring a dedicated 110V AC @ 50 Hz / 120V AC @ 60 Hz dual-frequency coil, this model isolates high-power 600V system voltage from your control logic inputs. This configuration satisfies stringent facility safety codes and permits direct interfacing with standard pushbuttons, PLCs, and pilot devices without requiring complex control circuit step-down transformers.
- Shipped as an open-type device with screw-clamp terminals, this contactor offers maximum installation flexibility for direct chassis or DIN-rail mounting inside custom-engineered NEMA-rated enclosures. This compact footprint layout optimizes panel real estate while ensuring the terminal connections remain highly accessible for rapid wiring, commissioning, and routine preventative torque checks.
- Built for the grueling lifecycles of industrial environments, the Class 8502 Type S series features completely replaceable contacts and coils rather than requiring a full-unit swap. This serviceable architecture addresses a critical operational pain point by slashing future maintenance downtime and reducing long-term total cost of ownership (TCO) compared to disposable, non-serviceable components.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 107.19 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Rated Power In Hp | 7.5 HP 200 V AC, 7.5 HP 230 V AC10 HP 460 V AC, 10 HP 575 V AC |
|---|---|
| Line Rated Current | 27 A |
| Control Circuit | separate control circuit |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E78351 CCN NLDX, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.253642155169987 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 8 kg CO2 eq., 7.616146260306852 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Contactor Application | non-reversing |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | fuse not supplied |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 54 |
| Width Nominal | 81.79 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 1.497 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.3716380441812215, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2571222931432578, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 422 kg CO2 eq., 421.6687840271275 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Range Of Product | 8502S |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 432 kg CO2 eq. |
| Pep Code | ENVPEP2506044EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 110.24 mm |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz110 V AC 50 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
Environment Attributes Main
| Product Compatibility | circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V ACfuse J 60 A maximum, SCCR: 100 kA at 600 V AC, fuse T 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC, fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 432.1673327799288 |
| Eu Rohs Directive | Not compliant |
| Nema Size | 1 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2506044EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2506044EN |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Provided Equipment | fuse not supplied |
| Product Or Component Type | contactor |
|---|---|
| Range Of Product | 8502S |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
